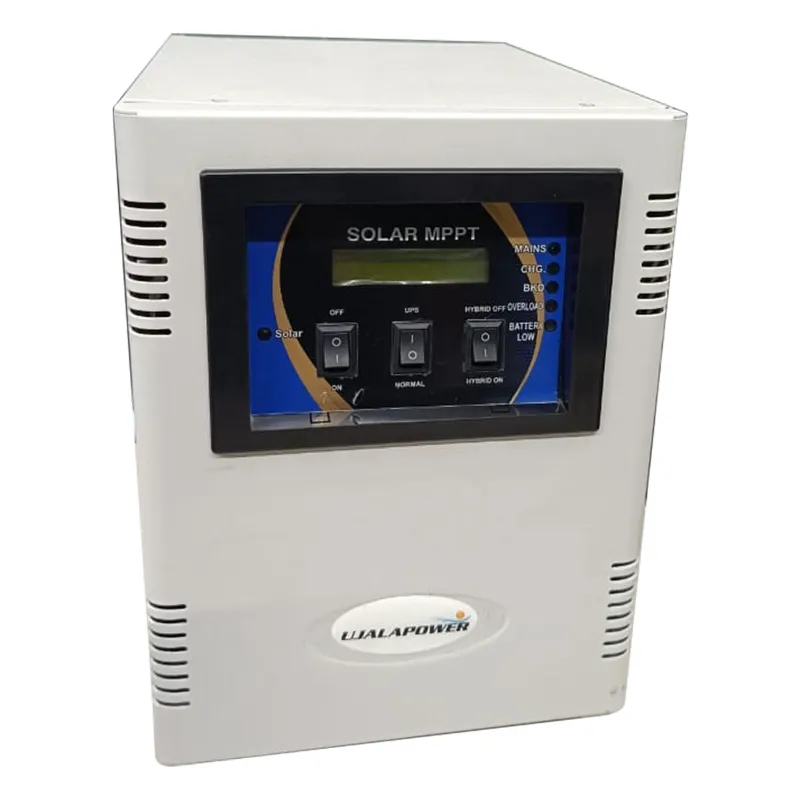

Ujala Hybrid Solar 1000,12V( Sine Wave MPPT) Compact Inverter Designed for residential use

Brand: UJALA

Ujala Hybrid Solar 1000,12V( Sine Wave MPPT) Compact Inverter Designed for residential use
4.7

Name: Ujala Hybrid Solar 1000,12V( Sine Wave MPPT) Compact Inverter Designed for residential use
Brand: UJALA
SKU: TB-UJ-33586
Price: 11490 INR
Availability: InStock
Rating: 4.67 (3 reviews)

SKU: TB-UJ-33586

MRP : ₹16311 ₹11490

30% OFF!

1427 people have viewed this recently

Get Extra ₹172 OFF on Prepaid Orders

Estimated Delivery By: May 27 - May 29

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹11490 (Including GST)

MRP : ₹16311

30% OFF!

Get Extra ₹172 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

Home UPS
Residential use

Warranty : 2 Year on Manufacturing Defect

Country of origin: India

Brand: UJALA
Weight (Approx.) : 18 kg

Model : Solar 1000
Capacity : 1000va
Voltage : 12v
SPV Open Circuit Voltage Range (Min-Max) : 18-45 v
Max SPV Power : 1 KW
Compatible SPV Panels : 36/60/72 Cell

MPPT BASED CHARGE CONTROLLER

Switching Element : IGBT Module
Controller : DSP
Efficiency : >95%
Battery Charging Stages : 5 (Softstart, Boost, Absorption, Float, Equalize)

BATTERY

Low Cut Off Volts : 10.5/Battery +/-2%
Low Cut off Recovery Volts : 11.5/Battery +/-2%
Low Buzzer Volts : 10.7/Battery+/-2%
High Cut Off Volts : 15.5/Battery +/-2%
High Cut off Recovery Volts : 15.0/Battery +/-2%
Boost Charging Volt by SPV (TUB) Volts : 14.5/Battery +/-2%
Boost Charging Volt by Grid (TUB) Amps : 14.0/Battery +/-2%
Charging Current by Grid % : 10A +/-2%
No Load Battery Current : 0.02

OUTPUT

Output No Load (V) : 230 +/-2%
Output Frequency (Hz) : 50 +/-2c

Overload

Amp : 3.5A
Watts : 800W
Output Low Retry : 1 Time
Output Short Circuit : 1 Time

GRID

No of Phase : 1 Phase-3Wire PN.E.
Voltage Range (Inverter Mode) V : 100-280 +/-2%
Voltage Range (UPS Mode) V : 175-255 +/-2%
Frequency Range Hz : 45-55 +/-2%

DISPLAY

Alphanumeric : 16x2 LCD
Output (Inverter) : Voltage, Current, Power & Frequency
Input (Grid) : Voltage and Frequency
Battery : Voltage, Current
Status/Faults : Inverter Status, Mains Status, Charger Status, Solar Status & Battery Status

INVERTER

Switching Element : MOSFET
Output Voltage : 230 +/-2%
Phase :1 Phase-3Wire P.N.E
Output Waveform : Digitally Filtered Pure Sine Wave
Frequency : 50+/-2 Hz
Changeover (Mains to Inverter) : <10ms
Output Power Factor : 0.8 Pf
Overload Retry : 3 Times
Switches : System ON/OFF, Mode Selection Hybrid/PCU/Smart INV/UPS Selection
Indications (LED) : Inverter On, Mains in Range, Battery Low/High, Charger On, Overload Faults
Alarm (Audible) : Battery Low, Overload, Charger On, Inverter On, Solar Charger On
Protection : Overload, Short Circuit Protection, Over Voltage, SPV Surge & Transient protection (MOV Varistors) Reverse Polarity of Battery, Over temperature protection, Under Voltage & Over Voltage Protection
Cooling : Forced Air Cooling (Temp Controlled
Communication : Remote Monitoring System (Over GPRS/BLE & WiFi) or R5232
Operating Temp : 0-50 C
Operating Humidity : 95 %
Protection Class : IP20
Dimension (L x W x H) : 355 x 330 x 205 mm

Note : 2 Year Of Warranty Available Only On Technical Faults

Hybrid Solar 1000,12V( Sine Wave MPPT) inverter is ideal for small households needing reliable backup for essential appliances during power outages. It is portable and user-friendly, but it does not support solar power compatibility.
This inverter is a cost-effective solution for basic residential power needs, combining safety features and efficient performance.

Features

Capacity: The Solar 1000 is a 1000VA UPS system, suitable for powering small appliances or devices during power outages.
Type: It is a pure sine wave inverter, ensuring safe and stable power output for sensitive electronic devices.
Voltage: Operates on a 12V system, compatible with standard inverter batteries.
Design: Compact and lightweight, making it ideal for home use
