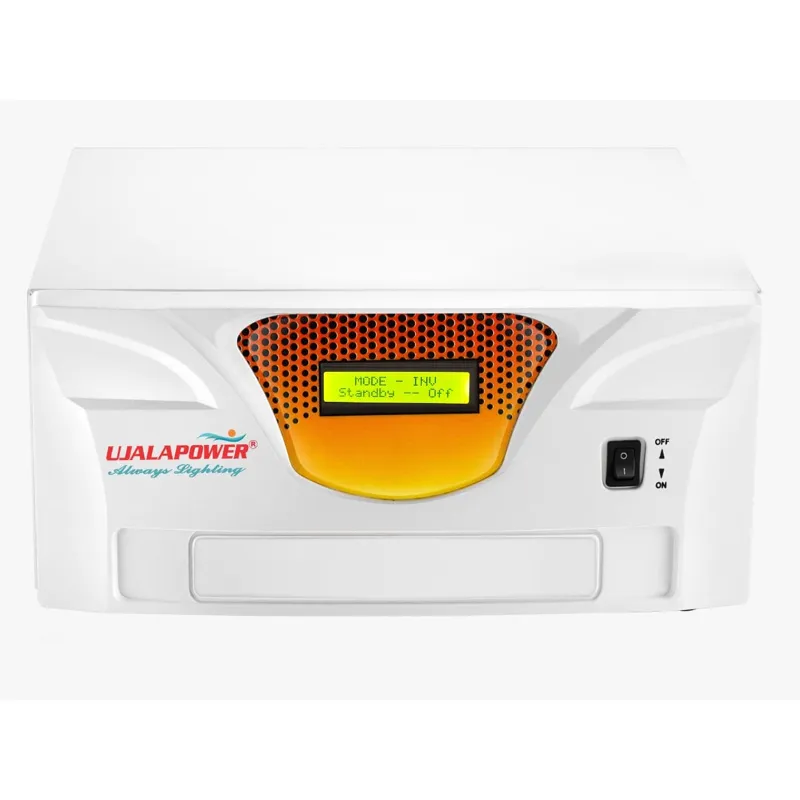

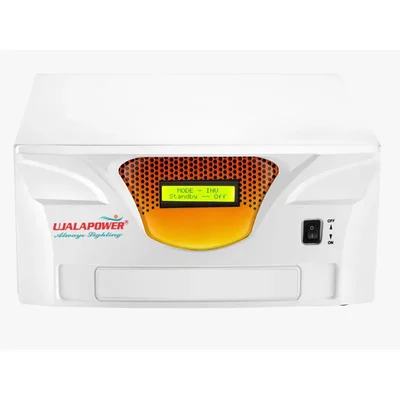

Ujala Hybrid Solar 1750VA 24V Sine Wave PWM Compact Inverter With 2 years Warranty Designed for Residential Use

Brand: UJALA

Ujala Hybrid Solar 1750VA 24V Sine Wave PWM Compact Inverter With 2 years Warranty Designed for Residential Use
5.0

Name: Ujala Hybrid Solar 1750VA 24V Sine Wave PWM Compact Inverter With 2 years Warranty Designed for Residential Use
Brand: UJALA
SKU: TB-UJ-33584
Price: 9890 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: TB-UJ-33584

MRP : ₹13944 ₹9890

29% OFF!

682 people have viewed this recently

Get Extra ₹148 OFF on Prepaid Orders

Delivery By: Dec 24 - Dec 26

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹9890 (Including GST)

MRP : ₹13944

29% OFF!

Get Extra ₹148 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

PWM
Residential use

Warranty of 2 Year on Manufacturing Defect

Country of origin: India

Brand: UJALA
Weight (Approx.) : 15 kg

Model : Solar 1750
Capacity : 1750va
Operation DC Voltage : 24
Switching Element : Mosfet
Charger Topology : Boost mosfet

Grid Stable Range :

Nominal Grid Voltage : 230V
Battery Low Buzzer : 21.2V+0.2V
Battery Low Cut : 21.2V+0.2V
Battery High Cut : 28.4V-0.2V
SPV Charging Current : Depends upon panel capacity
SPV Charging Voltage Boost : 29V--0.2V
SPV Charging Voltage Float : 28.4+-0.2V
Grid-Battery Charging Voltage Boost : 28.4-0.2V
Grid-Battery Charging Voltage Floot : 13.9V--0.2V
Grid-Battery Charging Current : 12AMP-2AMP
Grid Reconnect @ Battery Voltage : 11.6V
Grid Low Cut Voltage : 170V-10V
Grid Low Cut Recovery : 180+-10V
Grid Hight cut Voltage : 265V+-1OV
Grid High Cut Recovery : 255v+-10v
Change Over (Battery to Mains) : <5ms
Change Over (Mains to Battery) : Mode Enabled/ Disabled : <10ms/<60ms
Operating Mode : POU/Hydrid

Inverter

Output Phase : 1 Phase, 3 Wire
Nominal Output Voltage : 220-10V
Nominal Frequency : 50-1%
Load Powers Factor : 0.8
Output waveform : Sinewave
Typical Waveform : >80%
Voltage Harmonic : <3% (Line Load)
Overload Capacity (IT Load Enable)% : 100-110:10 Min 150-200:2 sec
Overload Capacity (IT Load Disable) % : 100-120(3times auto reset ): 60sec 250-350:1sec
Protection : Overload, Battery Low, Battery High, Output Short Circuit, battery Reverse, Over Heat, SPV high
Display (LCD) : Battery Voltage, Grid Voltage, Grid Frequency, Load %, Battery Graph, Overheat, SPV Current

Solar

Switching Element : Mosfet
Controller : Yes
Type of Charger : PWM
Efficiency : >90%
Input Voltage Range (Min-Max) Voc : 15-45V
Maximum PV Power Recommended : 1600 WATT

Environment

Cooling : Fan
Max. Relative Humidity @ 25°C (Non Condensing) : 90%

Hybrid Solar 1750VA 24V(Sine Wave PWM) inverter is ideal for small households needing reliable backup for essential appliances during power outages. It is portable and user-friendly, but it does not support solar power compatibility.
This inverter is a cost-effective solution for basic residential power needs, combining safety features and efficient performance.

Features

Capacity: The Solar 1750 is a 1750VA PWM, suitable for powering small appliances or devices during power outages.
Type: It is a pure sine wave inverter, ensuring safe and stable power output for sensitive electronic devices.
Voltage: Operates on a 24V system, compatible with standard inverter batteries.
Design: Compact and lightweight, making it ideal for home use
