Brand : Generic (Imported)

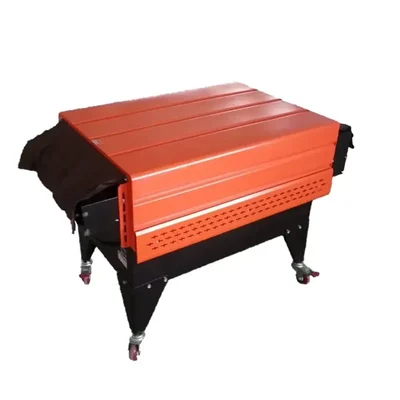

18x14 inch Thermal Shrink Packaging Machine
SKU : SD-AP-20235952
MRP :
₹79000
-
1
+
Get Extra ₹1,185 OFF on Prepaid Orders
Delivery By: Jun 20 - Jun 22
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Thermal Shrink Packaging Machine
Conveyor Speed : 0-10 m/min
Conveyor Loading : 30 kg
Country of origin: China
Specification
  • Brand: Generic (Imported)
  • Weight (Approx.) : 120 kg
  • Model No. : 4535L
  • Voltage Supply : 380V
  • Power : 9.6 KW
  • Conveyor Speed : 0-10 m/min
  • Conveyor Loading : 30 kg
  • Tunnel Size : 450 x 350 mm
  • Machine Dimensions (L x W x H) : 1600 x 610 x 1340 mm
  • Weight : 120 Kg (Approx)
Description
This thermal shrink packaging machine uses heat to shrink a plastic film tightly around the goods. This procedure has various advantages, including moisture proofing, dirt resistance, and protecting fragile things from external shocks. It is widely used in numerous industries, including food, beverage, healthcare, and pharmaceuticals.

Features

 :
  • Adopts hot air with down cyclone pressure structure.
  • Intelligent temperature control and AC variable speed regulator.
  • Both the height of tunnel and shutters on two sides are adjustable.
  • Adopts single hot air blower.
  • Can be used with heat shrinkable film such as PVC, POF, etc.

Usage

 :
1. Setup the Machine :
  • Place the thermal shrink packaging machine on a stable, flat surface.
  • Ensure that the machine is connected to a power source.
2. Prepare the Product :
  • Place the product you want to package into a suitable shrink film bag.
  • Make sure the bag is large enough to accommodate the product with some extra space for sealing.
3. Adjust Settings :
  • Turn on the machine and adjust the temperature settings according to the type of shrink film being used.
4. Load Products :
  • Place the prepared product with the shrink film bag onto the machine’s conveyor for sealing.
  • Ensure that products are spaced adequately to allow for proper sealing and shrinking.
5. Start Operation :
  • Activate the machine by pressing the start button.
  • Once sealed, products will move through the heating chamber where hot air will cause the film to shrink tightly around each item.
6. Collect Finished Products :
  • Once packaged, collect your finished products from the output area of the machine.

Maintenance :
  • Inspect the machine daily for any signs of wear or damage.
  • Monitor the shrink tunnel temperature to avoid overheating, which can cause burn holes in the film.

Applications

 :
  • Product Packaging : They are widely used for packaging bottles, cans, and other containers where a tight seal is required.
  • Labeling : Shrink tunnels can be utilized to apply shrink sleeves or labels that conform tightly to the shape of the product.
  • Bundling : These machines can bundle multiple products together using shrink film, providing stability and ease of handling during transportation.
  • Food Industry : In food packaging, shrink tunnels help preserve freshness by sealing products in airtight packaging.
  • Cosmetics and Pharmaceuticals : They are also employed in the cosmetics and pharmaceutical industries for tamper-evident seals.
