Brand: Toshweld

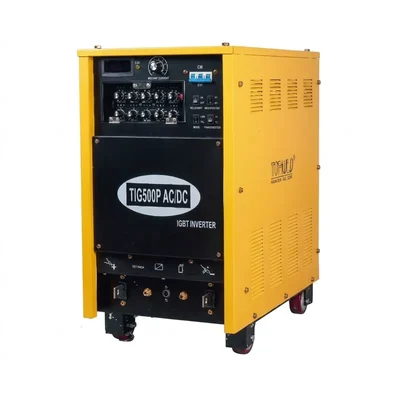

Toshweld 18kVA 3-Phase IGBT Module Industrial Aluminum TIG Welder, 500A Plant, TIG 500 P AC/DC
SKU: TI-TT-72150
Estimated Delivery By: May 28 - May 30
MRP : ₹223796 ₹186497
17% OFF!
Estimated Delivery By: May 28 - May 30 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹186497 (Including GST)
MRP : ₹223796
17% OFF!
Get Extra ₹2,797 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
A massive heavy-industrial 500A three-phase inverter welding plant powered by high-capacity IGBT modules. It features full pulse adjustments and an AC/DC toggle to cleanly execute x-ray quality welds on aluminum and steel up to 30mm thick.
Country of origin: China
Specifications
- Brand: Toshweld
- Weight (Approx.) : 60 kg
- Output Current Range : 500 amp
- Technology : IGBT
- Model: TIG 500 P AC/DC
- Machine Type: Industrial Inverter AC/DC Pulse TIG & Stick Dual-Process Welder
- Technology: Integrated Industrial IGBT Module System
- Phase: Three Phase (3 Phase)
- Input Voltage (V): AC415V±15%
- Input Power Capacity: 18 kVA
- Output Current Range: 10 – 500 A
- Rated Input Current: 53 A
- No-Load Voltage: 54 V
- Arc Ignition Type: HF (High-Frequency) Ignition
- Power Factor: 0.93
- Welding Plate Thickness (Aluminum & Steel): 0.3 mm – 30.0 mm
- Dimensions: 27 x 18 x 32 Inches
Description
The Toshweld TIG 500 P AC/DC is a flagship heavy-industrial multi-process inverter welding station designed for heavy structural engineering, shipyards, and high-duty-cycle factory operations. This machine produces an unwavering, spatter-free arc with an incredibly clean square wave structure, powered by a huge, highly reliable integrated IGBT Module network. With a strong 18kVA input capacity and a three-phase 415V industrial grid, it can handle harsh applications ranging from 10 to 500 Amps. This workhorse allows code-compliant, x-ray quality fusion on both delicate and extra-thick aluminum, magnesium, stainless steel, and alloy plates up to 30mm thick. It has integrated High-Frequency (HF) non-contact arc ignition and independent parameter knobs for wave balancing and pulsing frequency.
Features
:- Heavy Industrial IGBT Module Core: Ultimate arc stiffness, low thermal fatigue, and dependable performance on extended continuous industrial shifts are guaranteed by the large-capacity module block system.
- AC/DC Square Wave Balance: Provides stable Direct Current (DC) for high-penetration steel joints or dynamic Alternating Current (AC) with exact pulse width control to remove heavy surface oxides from aluminum.
- Pre-flow gas, start current, upslope time, peak current, base current, down-slope decay, crater current, pulse frequency, and post-flow gas timings may all be adjusted with this comprehensive analog control board.
- Heavy-Duty Industrial Mobile Platform: This robust steel cabinet, which has four heavy-duty lockable shop wheels and a foot-pedal control connection socket, condenses a huge 60 kg industrial build.
Applications
:- Heavy Armor & Ship Fabrication: Alloy armored panels, landing platforms, and thick aluminum ship hulls are all subjected to deep-penetration structural welding.
- Pressure Vessel Manufacturing: Radiography examinations are necessary for continuous high-purity root and cap passes on boiler pipelines and heavy chemical storage reactors.
- Aerospace & Rail Engineering: Customized thick aluminum frameworks, high-speed rail car bogies, and structural component welding.
- Reconditioning worn parts, structural gearboxes, and thick alloy booms on mining or earthmoving rigs are examples of heavy industrial machinery maintenance.
Usage
:- Make sure the main electrical panel in your industrial workshop is configured to provide the device terminal block with a dedicated, grounded, three-phase AC 415V connection line.
- Connect the TIG torch gas lead firmly to the front panel interface and connect your argon gas source to the rear port via a sturdy flowmeter regulator.
- Directly attach the grounding return clamp to a raw, brilliantly polished part of the target steel plate that is free of oils, rust, and mill scale.
- Choose "DC" for carbon and stainless steel arrays or "AC" for aluminum fabrications on the control mode rocker switch, then adjust the pulse frequencies to fit your puddle specifications.
