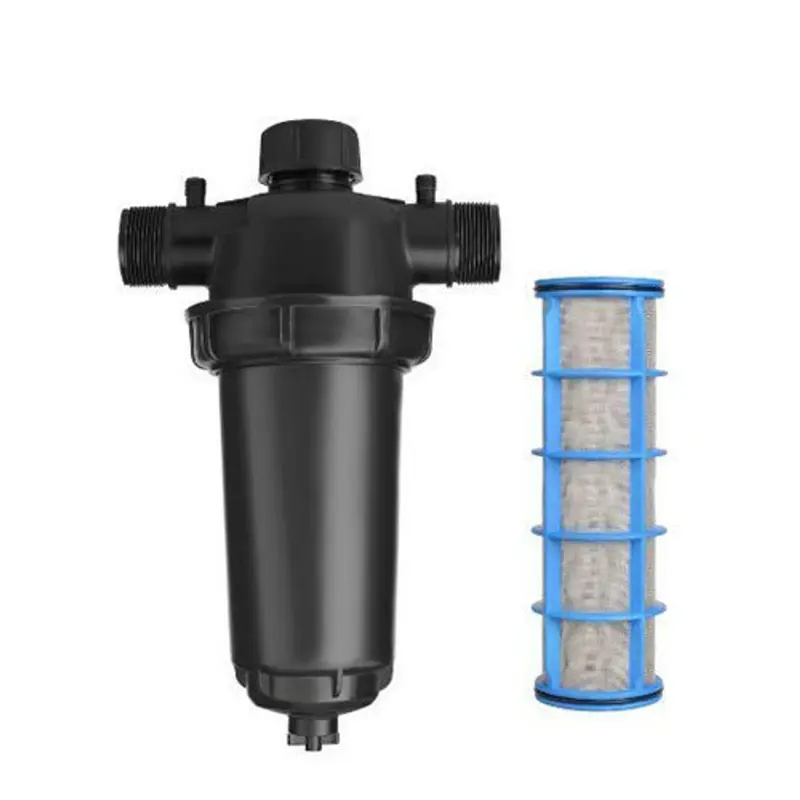

A screen filter is a type of filtration of water, using a rigid or flexible screen to separate sand and other fine particles out of water for irrigation. Its long lasting and easy to install. This is The most effective and efficient type of filters that automatically flush debris from the screen using a focused backwash. Requiring minimal manual maintenance and cleaning, this type of screen filter also requires a lot less water for backwashing, leading to significant time and cost savings.
Features :
Flow passes through Inside to Outside of Screen cartridge
Uniform distribution of flow into filter housing optimize filtration process.
Filter designed for Max. Operating Pressure 6bar (Pn6).
1/4" Male threaded 2 pressure ports.
Stainless Steel (SS 316) double mesh screen for rust prevention.
Union Nut for easy dismantling of filter for fast cleaning operation.
Filter body cap equipped with 1/2” female threaded connection for draining.
Screen Cartridge with Double Screen 30 & 120mesh to avoid tearing of mesh.
Specifications :
Model No : HT-124TE
Product Type : Agriculture Screen Filter
Brand : Automat
Size : 2 Inch
Max. Working Pressure : 6 kg/cm2
Inlet/ Outlet Connection : 2 Inch BSP/NPT Male Thread
Range of Flow Rate : 18 -22 m3/hr
Recommended Flow : 20 m3/h (333 ltr/min)
Filter Disk (Standard) : Double Screen 30/120 mesh
