Brand: Jadever

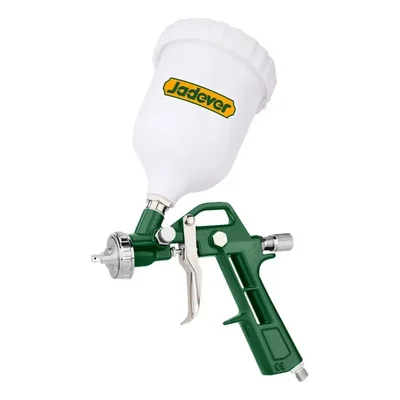

Jadever 1.5mm 600ml Cup Capacity Air Spray Gun, Suitable for Base Coat
SKU: TI-TG-45612
Delivery By: Dec 31 - Jan 2
MRP : ₹1540 ₹999
35% OFF!
Delivery By: Dec 31 - Jan 2 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹999 (Including GST)
MRP : ₹1540
35% OFF!
Get Extra ₹15 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Jadever 1.5mm 600ml Cup Capacity Air Spray Gun
Suitable for Base Coat
Country of origin: Taiwan, Province of China
Specifications
- Brand: Jadever
- Weight (Approx.) : 800 gm
- Cup Capacity : 600 ml
- Standard Nozzle : 1.5mm
- Pattern Width : 180-250mm
- Optional nozzle : 1.2-1.8mm
- Operating pressure : 3-4bar
- Air consumption : 4.2-7.1cfm
Description
The Jadever 1.5mm 600ml Cup Capacity Air Spray Gun delivers uniform atomization for professional base coat applications with 180-250mm pattern width and 0.3-0.4 MPa operating pressure. This lightweight pneumatic tool features aluminum body construction, top-mounted 600ml cup for gravity feed, and multiple connector options (Europe, USA, Nitto types) for versatile workshop compatibility. Ideal for automotive refinishing with smooth finish and minimal overspray.
Features
:- 1.5mm standard nozzle optimized for base coat with 180-250mm spray pattern.
- 600ml gravity feed cup capacity reduces refills during large panel coverage.
- 0.3-0.4 MPa air pressure with 1/4-inch inlet for efficient atomization.
- Aluminum body with ergonomic handle; compatible with Europe/USA/Nitto connectors.
- Adjustable fluid control and air cap for precise pattern/fan control.
Applications
:- Automotive base coat spraying on panels, fenders, and doors.
- Industrial primer application on metal surfaces and parts.
- Woodworking sealer coats for cabinets and furniture.
- Marine hull priming and corrosion protection coatings.
- General workshop base layer painting and undercoating.
Usage
:- Connect to 0.3-0.4 MPa clean, lubricated air via 1/4-inch inlet and compatible connector.
- Fill 600ml cup with thinned base coat (viscosity 15-20 seconds Ford #4 cup); attach securely.
- Adjust fluid knob and air cap for 180-250mm fan pattern; test on scrap.
- Maintain 15-20cm distance, overlap 50%; trigger pull-back-release technique.
- Clean immediately with solvent; lubricate, disconnect air, store dry.
