Brand: Painter

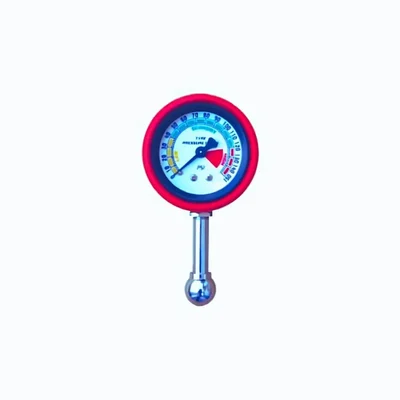

Painter Analogue Air Chuck Inflator (NM-10)
SKU: TI-N1-54835
Delivery By: Jan 19 - Jan 21
MRP : ₹420 ₹319
24% OFF!
Delivery By: Jan 19 - Jan 21 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹319 (Including GST)
MRP : ₹420
24% OFF!
Get Extra ₹5 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Analogue air chuck with integrated pressure gauge
For precise tire inflation monitoring
Country of origin: India
Specifications
- Brand: Painter
- Weight (Approx.) : 115 gm
- Net Quantity : 1 pc
- Model Number : NM-10
- Type : Analogue Air Chuck with Integrated Gauge
- Chuck Type : Schrader valve with swivel gauge head
- Pressure Range : 0-160 PSI (0-11 BAR)
- Gauge Accuracy : ±2% full scale
- Material : Forged brass body with shatterproof gauge
- Connection : 1/4" NPT female standard fitting
- Display : Dual PSI/BAR analogue dial
- Operating Temperature : -10°C to +75°C
Description
The NM-10 Analogue Air Chuck Inflator features integrated pressure gauge with 115-gram durable construction for precise tire pressure monitoring during inflation. This professional-grade chuck displays real-time PSI/BAR readings directly at the valve stem, eliminating separate gauge requirements. Heavy-duty brass body with swivel head ensures reliable Schrader valve sealing in workshop and roadside applications.
Features
:- 115 Gram Integrated Gauge : Built-in analogue pressure display (0-160 PSI)
- Real-Time Pressure Reading : Monitor inflation progress without removing chuck
- 360° Swivel Head : Full rotation prevents hose kinking during valve access
- High Accuracy Gauge : ±2% precision across automotive pressure range
- Dual Scale Display : PSI and BAR markings for universal readability
- Lock-On Valve Grip : Secure clip mechanism maintains connection under pressure
- Corrosion-Resistant Brass : Chrome-plated construction withstands workshop conditions
- Thumb-Operated Bleed Valve : Fine pressure adjustment without disconnection
Accessories
:- 1 x NM-10 Analogue Air Chuck Inflator (115g)
- 1 x Protective gauge cover
- 1 x Lanyard attachment ring
Applications
:- Car tire pressure adjustment
- Truck and LCV tire inflation
- Motorcycle tire monitoring
- Roadside pressure correction
- Workshop tire service station
- Garage precision inflation
- Fleet maintenance pressure check
- Professional tire pressure tool
Usage
:- Connect chuck base to compressor hose (1/4" NPT)
- Remove protective gauge cover
- Push swivel head firmly onto clean tire valve stem
- Inflate while monitoring integrated analogue gauge
- Use thumb bleed valve for final pressure fine-tuning
- Release clip lock and swivel away from valve stem
- Replace gauge cover before storage
