Brand : Ralli Wolf

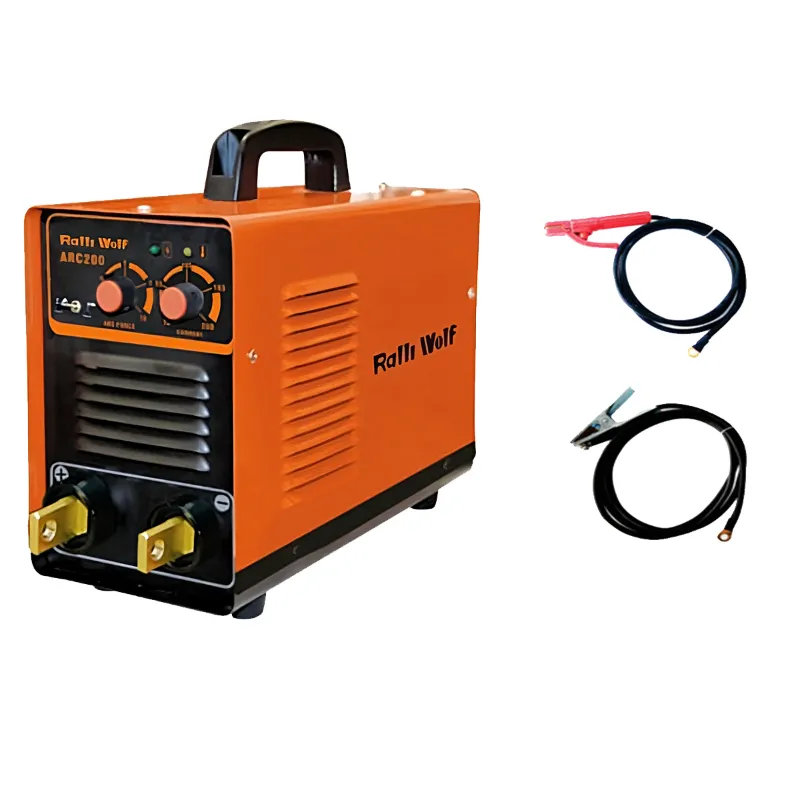

Ralli Wolf ARC 200 Single Phase IGBT Series Inverter Welding Machine 220 Amp. (R76)
SKU : AB-RW-20233263
MRP : ₹48000
₹32890
31% OFF!
-
1
+
789 people have viewed this recently
Get Extra ₹493 OFF on Prepaid Orders
Delivery By: Aug 7 - Aug 9
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
ARC 200 IGBT Welding Machine
Single Phase Inverter Welding Machine
30 - 220 Amp Output Current
Country of origin: India
Specification
  • Brand: Ralli Wolf
  • Weight (Approx.) : 8.2 kg
  • Output Current Range : 200 amp
  • Technology : IGBT
  • Model No. : R 76
  • Input Voltage : AC 220 ± 15%
  • Electricity Connection : Single Phase
  • Frequency : 50 / 60 Hz
  • Rated Input Current : 47 Amp.
  • Power : 10.1 kVA
  • No-load Voltage : 70 V
  • Output Current Range : 30 - 220 Amp
  • Rated Output Voltage : 28 V
  • Duty Cycle : 60 %
  • No-load Loss : 40 W
  • Efficiency : 85 %
  • Power Factor : 0.73
  • Insulation Grade : F
  • Housing Protection Grade : IP 21
  • Inverter Technology : IGBT
Suitable For :
  • 2.5 mm (MS Rod)
  • 3.15 mm (MS Rod)


Description
A high-performance instrument built for demanding welding jobs is a 200 amp welding machine. With its 200 amp electrical current delivery capacity, this kind of machine is ideal for welding thick materials and managing challenging jobs. Professionals that require a strong, high-capacity instrument for challenging welding tasks may consider a 200 amp welding machine since it offers the strength and versatility needed to complete the task quickly and effectively.

            Features

             :
            • High efficiency MMA DC welder
            • Smooth & stable arc with minimum spatter and quality weld
            • High efficiency and power factor reduce electricity bill
            • Over / under voltage protection
            • Over temperature / thermal protection
            • Suitable for all category electrodes
            • Conforms to BIS :4559
            • The machines can be used with long extended cables at a considerable distance from the power source
            • Digital display of the parameters
            • Display of both set and load current
            • TIG/ Argon welding with scratch/lift arc start with optional TIG accessories
            • VRD feature – power-coated eco-friendly power source. The equipment can be used for MMA/ TIG ( lift arc) and Gouging ( 400 Amps and above)

            Accessories

             :
            Standard Accessories :
            • 1 x Earthing Clamp
            • 1 x Electrode Holder
            Note :
            • Do not use the welder for work other than welding.
            • Do not touch the live part.
            • Do not solder in places where skimming, cleaning, and spraying are required.
            • When using, please wear a protective cover or protective clothing.

            Applications

             :
            • Infrastructure / Steel Plants / Railways / Oil & Gas / Power & Energy /Repair & Maintenance / Process Industries
