Brand : Ralli Wolf

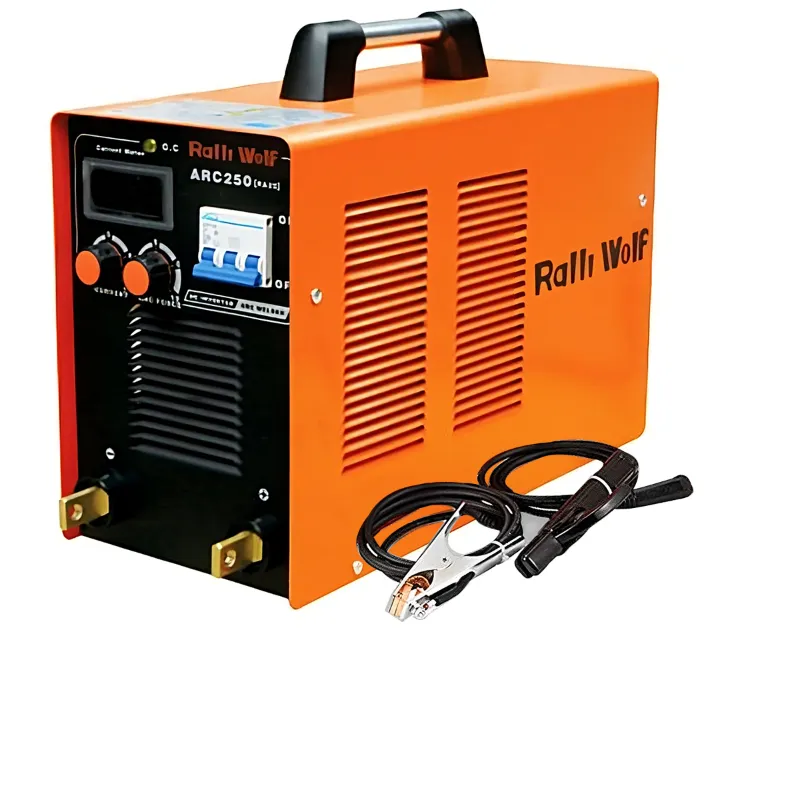

Ralli Wolf ARC 250 Three Phase Mosfet Series Inverter Welding Machine 250 Amp. (RA25)
SKU : AB-RW-20233266
MRP : ₹44780
₹31180
30% OFF!
-
1
+
1036 people have viewed this recently
Get Extra ₹468 OFF on Prepaid Orders
Delivery By: Jun 20 - Jun 22
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
ARC 250 Mosfet Welding Machine
Three-Phase Inverter Welding Machine
30 - 250 Amp Output Current
Country of origin: India
Specification
Description
A 250 amp welding machine can produce up to 250 amps of output current, making it a potent instrument for a variety of welding tasks. This amperage level enables welders to deal with thicker materials and complete more difficult jobs, making it appropriate for both professional and light industrial applications. Because of its capacity, it is ideal for medium- to heavy-duty applications, such as welding heavier materials and intricate welds in a variety of sectors.

Features :
  • High-efficiency MMA DC welder
  • Smooth & stable arc with minimum spatter and quality weld
  • High efficiency and power factor reduce electricity bill
  • Over / under voltage protection
  • Over temperature / thermal protection
  • Suitable for all category electrodes
  • Conforms to BIS :4559
  • The machines can be used with long extended cables at a considerable distance from the power source
  • Digital display of the parameters
  • Display of both set and load current
  • TIG/ Argon welding with scratch/lift arc start with optional TIG accessories
  • VRD feature – power coated eco friendly power source. The equipments can be used for MMA/ TIG ( lift arc) and Gouging ( 400 Amps and above)

Specifications :
  • Model No. : RA25
  • Input Voltage (V) : AC 415 ± 15%
  • Frequency (HZ) : 50 / 60
  • Rated Input Current (A) : 13
  • Power (KVA) : 9.4
  • No-load Voltage (V) : 60
  • Output Current Range (A) : 30 - 250
  • Rated Output Voltage (V) : 30
  • Required Phase : Three Phase
  • Duty Cycle (%) : 60
  • No-load Loss (W) : 40
  • Efficiency (%) : 85
  • Power Factor : 0.93
  • Insulation Grade : F
  • Housing Protection Grade : IP 21
  • Inverter Technology : MOSFET

Accessories :

  • 1 x Welding Cable
  • 1 x Earthing Cable

Suitable For :
  • 2.5 mm 3.15 mm 4 mm (MS Rod)
  • 2.5 mm (SS Rod)

Areas of Application :
  • Infrastructure / Steel Plants / Railways / Oil & Gas / Power & Energy /Repair & Maintenance / Process Industries

Note :
  • Do not use the welder for work other than welding.
  • Do not touch the live part.
  • Do not solder in places where skimming, cleaning and spraying are required.
  • When using, please wear a protective cover or protective clothing.
