Brand: Generic (Imported)

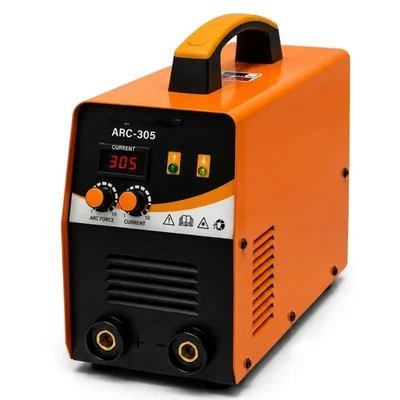

Premium Quality ARC-305 220V 305A Single Phase Advanced IGBT Inverter Arc Welding Machine
SKU: TI-TB-16098
103 people have bought this recently
Estimated Delivery By: Aug 18 - Aug 20
MRP : ₹7700 ₹5630
27% OFF!
103 people have bought this recently Estimated Delivery By: Aug 18 - Aug 20 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹5630 (Including GST)
MRP : ₹7700
27% OFF!
Get Extra ₹84 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Advanced 305A IGBT inverter arc welding machine with arc force control, thermal protection, and 3-meter cables.
Country of origin: China
Specifications
- Brand: Generic (Imported)
- Weight (Approx.) : 4.5 kg
- Output Current Range : 305 amp
- Technology : IGBT
- Input Voltage: AC 1PH 220V ± 15%
- Input Frequency: 50 / 60 Hz
- Input Current (Max.): 24 A
- Rated Input Power: 7.2 KVA
- No Load Voltage: 65 V
- Output Current Range: 20 – 305 A
- Duty Cycle: 60% @ 305A
- Arc Force Range: 0 – 10
- Electrode Size Compatibility: 2.5 mm, 3.15 mm, and 4.0 mm
- Efficiency: 85%
- Insulation Class: F
- Protection Class: IP21S
- Dimensions (L x W x H): 380 x 150 x 270 mm
Description
The Generic ARC-305 Inverter Arc Welding Machine is an advanced IGBT-based power source engineered for professional welders, fabrication workshops, and construction sites. Delivering a powerful output current range from 20A to 305A with a 60% duty cycle at 305A, it produces a strong, stable arc with excellent penetration and low spatter. Built for heavy-duty reliability, it features variable arc force control, an efficient cooling fan system, and built-in protection against over-voltage, over-current, and thermal overload. Compact and portable at 7.5 kg, this versatile inverter machine works smoothly with all standard electrode sizes, including 2.5 mm, 3.15 mm, and 4.0 mm.
Features
:- Advanced IGBT Inverter Technology: Ensures high operational efficiency, stable arc performance, and reduced power consumption.
- Stable Arc & Low Spatter: Provides smooth welding performance with deep penetration and minimal spatter for clean bead finishes.
- Arc Force Control Knob: Allows fine-tuning of arc stability (0 to 10) to prevent electrode sticking during heavy-duty tasks.
- Comprehensive Electrical Protection: Integrated safeguards protect against over-voltage, over-current, and thermal overload hazards.
- Wide Electrode Compatibility: Operates seamlessly with 2.5 mm, 3.15 mm, and 4.0 mm welding electrodes.
Accessories
:- 1 Pc Welding Machine, 1 Pc Welding Holder & 1 Pc Earth Clamp
- Do not use the welder for work other than welding.
- Do not touch the live part.
- Do not solder in places where skimming, cleaning and spraying are required.
- When using, please wear a protective cover or protective clothing.
Applications
:- Metal Fabrication: Steel structure assembly, sheet metal joining, and custom metalwork.
- Construction Sites: On-site structural repair, beam welding, and metal framework installation.
- Maintenance & Workshop: Industrial machine maintenance, auto body repairs, and general job work.
Usage
:- Connection Setup: Attach the 3-meter electrode holder cable to the positive (+) terminal and the earth clamp cable to the negative (-) terminal on the front panel.
- Grounding: Securely attach the heavy-duty earth clamp to a clean, unpainted surface of the metal workpiece.
- Power On: Plug the 220V single-phase power cable into a compatible socket and switch on the main breaker.
- Current & Arc Adjustment: Select the desired output current (20–305A) and adjust the Arc Force dial according to the chosen electrode diameter (2.5mm, 3.15mm, or 4.0mm).
- Operation: Strike the arc to begin welding, keeping consistent travel speed; switch off the machine and allow fans to cool the unit after completing the job.
