Brand : Ralli Wolf

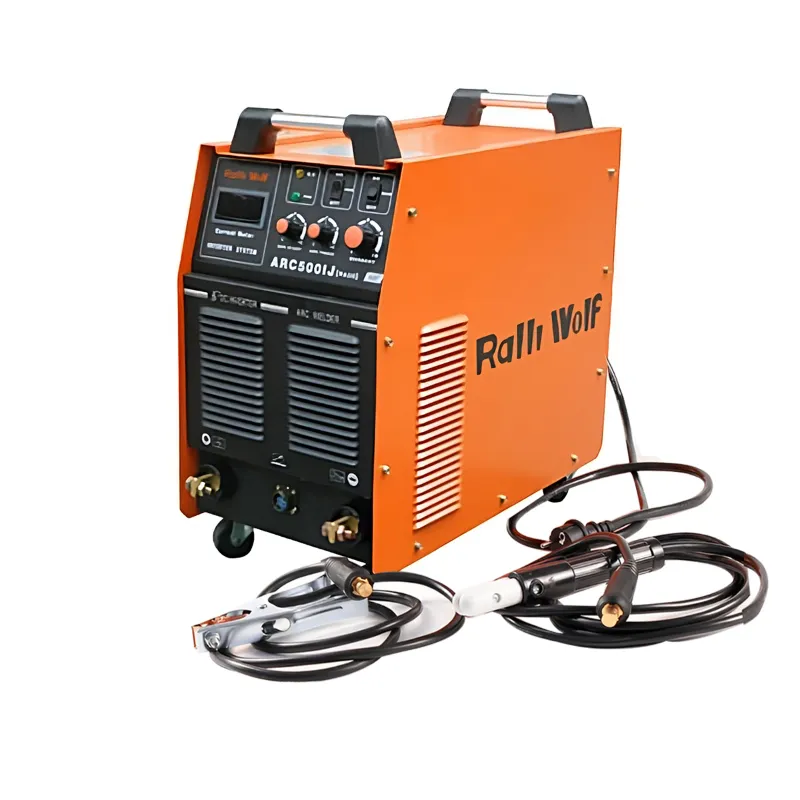

Ralli Wolf ARC 500 Single and Double Phase IGBT Series Inverter Welding Machine 500 Amp (RA50)
SKU : AB-RW-20233272
MRP : ₹143500
₹102500
29% OFF!
-
1
+
912 people have viewed this recently
Get Extra ₹1,538 OFF on Prepaid Orders
Delivery By: Aug 5 - Aug 7
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
ARC 500 IGBT Welding Machine
Three Phase Inverter Welding Machine
40 - 500 Amp Output Current
Country of origin: India
Specification
  • Brand: Ralli Wolf
  • Weight (Approx.) : 40 kg
  • Output Current Range : 500 amp
  • Technology : IGBT
  • Model No. : RA50
  • Input Voltage (V) : AC 415 ± 15%
  • Frequency (HZ) : 50 / 60
  • Rated Input Current (A) : 35
  • Power (KVA) : 25.3
  • No-load Voltage (V) : 80
  • Required Phase : Single and Double Phase
  • Output Current Range (A) : 40 - 500
  • Rated Output Voltage (V) : 40
  • Duty Cycle (%) : 60
  • No-load Loss (W) : 80
  • Efficiency (%) : 85
  • Power Factor : 0.93
  • Insulation Grade : F
  • Housing Protection Grade : IP 21
  • Inverter Technology : IGBT

Suitable for :
  • 2.4-6 mm

Description
Ralli Wolf ARC 500 Single and Double Phase IGBT Series Inverter Welding Machine 500 Amp (RA50)

Features :
  • High-efficiency MMA DC welder
  • Smooth & stable arc with minimum spatter and quality weld
  • High efficiency and power factor reduce electricity bill
  • Over / under voltage protection
  • Over temperature / thermal protection
  • Suitable for all category electrodes
  • Conforms to BIS :4559
  • The machines can be used with long extended cables at a considerable distance from the power source
  • Digital display of the parameters
  • Display of both set and load current
  • TIG/ Argon welding with scratch/lift arc start with optional TIG accessories
  • VRD feature – power-coated eco-friendly power source. The equipment can be used for MMA/ TIG ( lift arc) and Gouging ( 400 Amps and above)

Specifications :
  • Model No. : RA50
  • Input Voltage (V) : AC 415 ± 15%
  • Frequency (HZ) : 50 / 60
  • Rated Input Current (A) : 35
  • Power (KVA) : 25.3
  • No-load Voltage (V) : 80
  • Required Phase : Single and Double Phase
  • Output Current Range (A) : 40 - 500
  • Rated Output Voltage (V) : 40
  • Duty Cycle (%) : 60
  • No-load Loss (W) : 80
  • Efficiency (%) : 85
  • Power Factor : 0.93
  • Insulation Grade : F
  • Housing Protection Grade : IP 21
  • Inverter Technology : IGBT

Suitable for :
  • 2.4-6 mm

Areas of Application :
  • Infrastructure / Steel Plants, Railways / Oil & Gas / Power & Energy /Repair & Maintenance / Process Industries

Standard Accessories :
  • Earthing Clamp
  • Electrode Holder

                                Features

                                 :
                                • High-efficiency MMA DC welder
                                • Smooth & stable arc with minimum spatter and quality weld
                                • High efficiency and power factor reduce electricity bill
                                • Over / under voltage protection
                                • Over temperature / thermal protection
                                • Suitable for all category electrodes
                                • Conforms to BIS :4559
                                • The machines can be used with long extended cables at a considerable distance from the power source
                                • Digital display of the parameters
                                • Display of both set and load current
                                • TIG/ Argon welding with scratch/lift arc start with optional TIG accessories
                                • VRD feature – power-coated eco-friendly power source. The equipment can be used for MMA/ TIG ( lift arc) and Gouging ( 400 Amps and above)

                                Accessories

                                 :
                                • Earthing Clamp
                                • Electrode Holder

                                Applications

                                 :

                                • Infrastructure / Steel Plants, Railways / Oil & Gas / Power & Energy /Repair & Maintenance / Process Industries
