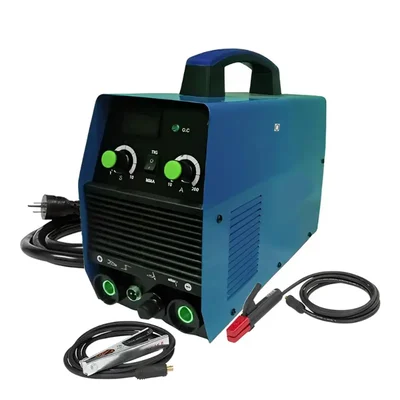

Heavy Duty 200 Amp Single Phase ARC/TIG Inverter Welding Machine With IGBT Technology
Applications:
Heavy duty Workshop welding work & welding up to 3.15 mm MS (Mild-steel) rod & SS (Stainless steel) welding rods in automobile workshop & fabrication welding work.
Suitable Welding Rods : Continuous MS welding of up to 3.15 mm rods & 2.5 mm (No. 12 & 10) SS welding.
Specification:
Product Type : Inverter Type Welding machine
Brand : Imported
Technology : ARC/TIG
Type : IGBT
Electrode Diameter : 2.5 mm & 3.15 mm (No. 12 & 10)
Power Voltage : 230V
Electricity Connection : Single Phase
Frequency : 50 Hz
Rated input current : 42 Amp
No load voltage : 59 V
Rated current : 30-200 Amp
Rated output voltage : 28 V
Duty cycle : 60%
Dimension : 375 x 155 x 232 mm
Weight : 10 Kg (Approx)
Accessories:
1 x Welding Machine
1 x Operator's Manual
1 x Working Clamp
1 x Earthing Clamp
Note :
Do not use the welder for work other than welding.
Do not touch the live part.
Do not solder in places where skimming, cleaning and spraying are required.
When using, please wear a protective cover or protective clothing.
