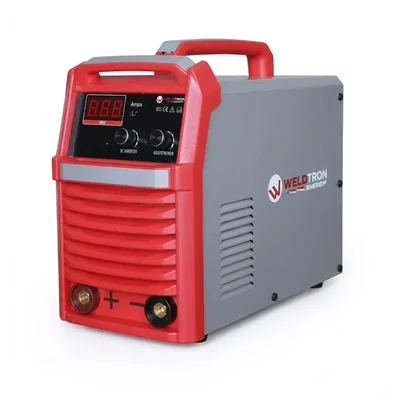

Weldtron 400A 1+2+3 Phase 5-PCB IGBT Inverter Welder 40N120 ARC-400K
SKU: TI-W4-67617
Estimated Delivery By: Apr 8 - Apr 10
MRP : ₹21710 ₹16700
23% OFF!
Estimated Delivery By: Apr 8 - Apr 10 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹16700 (Including GST)
MRP : ₹21710
23% OFF!
Get Extra ₹251 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Weldtron ARC400K 400A tri-phase heavy-duty inverter MMA welder with 5-PCB design, 4x 40N120 IGBTs, 12038 industrial fan for structural steel fabrication up to 10mm electrodes.
Country of origin: India
Specifications
- Brand: Generic ( Made in India )
- Weight (Approx.) : 10 kg
- Output Current Range : 400 amp
- Technology : IGBT
- Model: ARC400K
- Input Voltage: 220V/380V/415V (1+2+3 Phase Universal)
- Output Current: 50-400A (Adjustable)
- IGBT Modules: 4 x 40N120 (1200V/40A Industrial)
- Rectifier Diodes: 4 x 8040 (Heavy Power Rated)
- Capacitors: 6 x 400V 560uF (Production Grade Filter)
- Cooling Fan: 1 x 12038 (Extreme Duty High Volume)
- Duty Cycle: 60% @ 400A / 100% @ 280A
- Open Circuit Voltage: 85-95V DC
- Efficiency: ≥90%
- Power Factor: 0.96
- Insulation Class: H (180°C Continuous)
- Protection Rating: IP23S (Industrial)
- Electrode Diameter: 4.0-10.0mm
- Dimensions: 425mm*215mm*375mm
Description
With its industrial-grade 5-PCB architecture and 1+2+3 phase compatibility (220V/380V/415V), the Weldtron ARC400K is the ultimate multi-phase inverter. With six 400V 560uF capacitors, four 40N120 IGBT modules, and four 8040 high-power diodes, it provides a reliable 400A output for even the most demanding electrodes up to 10mm in diameter. During production runs, the enormous 12038 fan guarantees constant cooling. This welder, which weighs 9 kg and has a roomy 425x215x375mm chassis, is used for major infrastructure projects, bridge construction, and shipbuilding.
Features
:- On construction sites, universal 1+2+3 phase operation removes power source constraints.
- With component-level serviceability, the industrial 5-PCB layout optimizes uptime.
- Unmatched arc force and penetration are provided by four 40N120 IGBTs (1200V/40A).
- Continuous high-current rectification is handled by four 8040 industrial diodes.
- There is complete ripple suppression thanks to six 400V 560uF capacitors.
- The heavy-duty 12038 axial fan maximizes airflow while rejecting workshop dust.
- 10mm electrode welding is supported by Extreme Duty Cycle without thermal shutdown.
- Sticking on heavy mill scale is prevented by advanced arc force adjustment.
- Phase imbalance and overloads are prevented by a complete protection package.
Applications
:- Construction of maritime structures and hull plating for ships.
- Construction of high-rise structural steel bridges.
- Fabrication of boilers and heavy pressure vessels.
- Repair of earthmoving equipment and mining draglines.
Usage
:- Choose the best phase configuration: 415V for production, 380V for fabrication, and 220V for repair.
- Present configurations: 320-400A (8-10mm electrodes) and 200-280A (5-6mm).
- For optimal deposition rates, keep the arc length between 5 and 8 mm at a 75° angle.
- Use an industrial fan to run continuously without experiencing thermal cycling.
