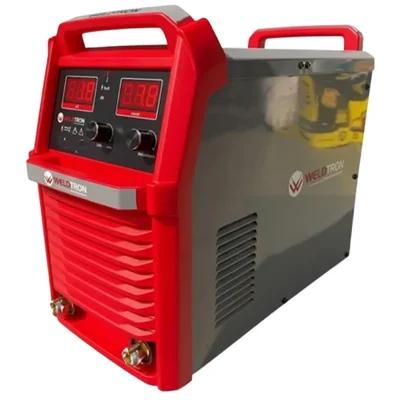

Weldtron 360A Real 3-Phase Modular IGBT Welder Dual Display ARC-630M
SKU: TI-W3-67619
Estimated Delivery By: Apr 8 - Apr 10
MRP : ₹44849 ₹34499
23% OFF!
Estimated Delivery By: Apr 8 - Apr 10 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹34499 (Including GST)
MRP : ₹44849
23% OFF!
Get Extra ₹517 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Weldtron ARC-630M 3-phase modular IGBT welder delivers 360A real current with dual 100A 1200V modules, 200mm fan, VRD safety for heavy shipbuilding and structural fabrication.
Country of origin: India
Specifications
- Brand: Generic ( Made in India )
- Weight (Approx.) : 19.3 kg
- Output Current Range : 360 amp
- Technology : IGBT
- Model: ARC630M
- Input Voltage: 415V 3-Phase ±15% (50/60Hz)
- Real Output Current: 360A Continuous
- Rated Capacity: 630A Peak / 360A Real
- IGBT Modules: 2 x 100A 1200V (Heavy Industrial Modular)
- Rectifier Diodes: 8 x 6030 (High Speed Recovery)
- Filter Capacitor: 1 x 200uF 800V CBB (Production Grade)
- Cooling Fan: 1 x 200mm (Extreme Duty High CFM)
- Display: Red Double Digital (Current + Voltage)
- Controls: VRD Switch + LUG Connectors
- Duty Cycle: 100% @ 360A / 60% @ 500A
- Open Circuit Voltage: 85-95V DC (VRD: <20V)
- Efficiency: ≥91%
- Power Factor: 0.97
- Insulation Class: H (180°C Continuous)
- Protection Rating: IP23S Industrial
- Electrode Diameter: 6.0-12.0mm
- Dimensions: 525 x 265 x 475mm
Description
With two 100A/1200V IGBT modules designed for 3-phase 415V operation, the Weldtron ARC-630M epitomizes industrial pinnacle performance and offers true 360A continuous output. It uses production shifts to power 8.0-12.0mm electrodes with eight 6030 high-speed diodes, a 200uF 800V CBB capacitor, and a large 200mm industrial fan. While VRD safety and LUG connectors guarantee operator protection and safe connections, the red double digital display provides accurate amperage/voltage monitoring. Designed for shipyards, heavy infrastructure, and crucial fabrication, it weighs 19.3 kg and has the same 525x265x475mm chassis as its smaller sibling.
Features
:- True 360A continuous industrial output is provided by dual 100A 1200V IGBT modules.
- Extreme rectification demands are handled by eight 6030 fast-recovery diodes
- Rock-solid arc stability is maintained under full load by a 200uF 800V CBB capacitor.
- Production shop pollutants are rejected by a massive 200mm high-volume fan.
- Current and voltage are continuously monitored by a red double digital display.
- For handling safety, the VRD safety switch lowers the open-circuit voltage below 20V.
- Under severe vibration, industrial LUG connectors guard against cable failure.
- Field replacement is possible without machine downtime thanks to the modular IGBT design.
- 12mm electrode continuous production welding is supported by the extreme duty cycle.
Applications
:- Longitudinal seam welding and heavy plate shipbuilding.
- Structural construction of offshore oil platforms.
- Gantry crane beam welding and heavy bridge trusses.
- Construction of reactors and large pressure vessels.
Usage
:- Secure LUG connections to a three-phase, 415V industrial supply.
- VRD is turned on for safe handling and off when welding.
- Current range: 400-500A peak (12mm electrodes), 300-400A (8-10mm).
- Keep the arc length between 8 and 12 mm, and keep an eye on the red dual display.
