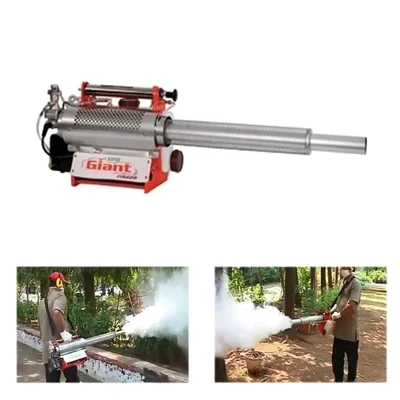

Aspee 5 L Giant Thermal Fogging Machine with Quick Start Technology | FOG/AGK/SS-150

5.0

• Model No. : FOG/AGK/SS-150
• IS Standard : IS –14855 (Part-1):2000
• Type : Thermal aerosol pulse jet fogging machine
• Starting Mechanism : Electronic circuit with 6/12 volt battery
• Air Compressor : Compact type dc motor for Auto starting
• Hand Pump : Addition optional facility for manual starting
• Carburetor : Venturi type with Petal valve
• Fuel Consumption (approx) : 1.5 lit./hour
• Chemical Consumption (approx) : 15 to 35 lit./hour
• Chemical Tank (SS-304) : 5.5 ltr
• Fuel Tank (SS-304) : 1.5 ltr
• Droplet Size : 8 to 20 μm
• Output of Combustion Chamber : 16.9 kW (14520 kcal / hour)

Features

• Stainless steel chemical and fuel tank
• Engine tube made from heavy duty material (SS-304), having long life
• Engine tube cover (Aluminum) – made from thicker pipe (+0.2mm) – To avoid heat transfer & increase cooling
• Quick start electronic circuit with air compressor
• Standby hand pump-start with 3-4 strokes
• No moving parts - hence maintenance free
• Available with Plastic Chemical Tank

Applications

Usage

• Prepare the solution: Mix the required chemical (pesticide or disinfectant) with diesel and fill the 5L tank.

• Ignite the machine: Use the quick-start technology to ignite and preheat the machine.

• Adjust settings: Set the desired fogging intensity and nozzle angle for effective coverage.

• Start fogging: Direct the nozzle toward target areas, ensuring uniform application.

• Post-use care: Flush clean water through the machine, clean components, and store safely.
