Brand : Hukums

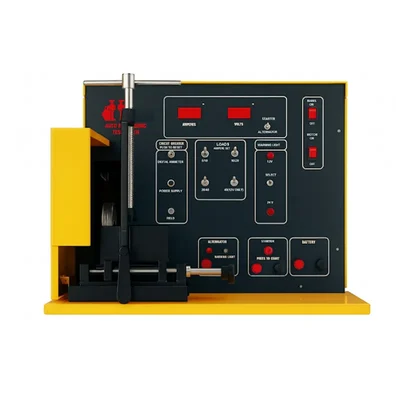

Hukums Auto Electrical Test Bench Mark II
SKU : TI-HA-46811
MRP : ₹109990
₹94999
14% OFF!
-
1
+
Get Extra ₹1,425 OFF on Prepaid Orders
Delivery By: Nov 4 - Nov 6
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Hukums Auto Electrical Test Bench Mark II
2 HP (1.5 kW) single-phase motor

Country of origin: India
Specification
  • Brand: Hukums
  • Weight (Approx.) : 90 kg
  • Drive : 2 HP (1.5 kW) single-phase motor with 2-step pulley.
  • Alternator load capacity : 12 V ⇒ up to 75 A / 24 V ⇒ up to 70 A
  • Starter-motor test : Free-run test up to 200 A (with external batteries)
  • Power requirement : 230 V single phase, 50 Hz, 1.5 kW input.
  • Instrumentation : Digital panel meter: 0-200 Amps for current.
  • Digital panel meter : 0-200 Volts for voltage.
  • Fixed field supply : 12 / 24 V at ~5 A for testing regulators.
  • Table working area : ~320 × 360 mm.
  • Maximum diameter of device under test : 175 mm (i.e., alternators or starters with up to ~175 mm diameter)

Description
The Hukums Auto Electrical Test Bench is a compact table model designed to meet the requirements of Auto Electricians, Workshops, Service Centers, Transport Fleets, Training Institutes, and other large users of Auto Electrical Equipment. It enables complete testing of Alternators, Regulators, and their associated components. Starter Motors can also be tested with the help of an external battery.

Features

 :
  • Power Requirement : 230V AC, Single Phase, 50 Hz, 1.5 KW
  • Vice : Heavy-duty quick mounting vice for Alternators & Starters (max. diameter 175 mm)
  • Design : Compact, bench-top model for easy portability
  • Regulator Tester : Compatible with 12V / 24V systems
  • Field Supply : Fixed 12 / 24 V, 5 Amp
  • Alternator Warning Light : 12V / 24V
  • Starter Motor Testing : Free run test up to 200 Amps (with external batteries)
  • Accessories : Supplied with a complete set of test leads
  • Safety Features : Working area covered with anti-slip rubber mat
  • Digital Metering : Separate digital meters for Alternator & Starter tests
  • Insulation Testing : 110 V series lamp provided for insulation checks

Applications

 :
  • Two-wheeler repair workshops.
  • Battery service centers.
  • Battery retailers.
  • Home use for regular battery maintenance.
