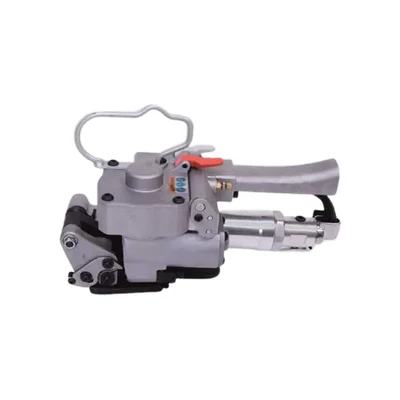

Automatic Pneumatic Strapping Tool
Strap Width 13-19 mm
Strap Thickness 1.0 - 1.5 mm
- Farm & Garden
- Pumps & Motors
- Food Processing
- Workshop, DIY & MRO
Brand : Generic (Imported)
Automatic Pneumatic Strapping Tool
SKU : GA-AP-20235922
MRP :
₹19999
-
1
+
906 people have viewed this recently
Delivery By: Jun 19 - Jun 21
Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
Short Description
Country of origin: China
Specification
- Brand: Generic (Imported)
- Weight (Approx.) : 4 kg
- Strap Width : 13-19 mm
- Strap Thickness : 1.0 - 1.5 mm
- Seal Type : Friction Weld
- Tension : 200 kg
- Pressure : 5-7 Bar
- Dimensions (L x W x H) : 275 x 115 x 130 mm
- Weight : 4 Kgs (Approx.)
Description
This Automatic Pneumatic Strapping Tool is a device that uses compressed air to perform the strapping process automatically. It features mechanisms for tensioning, sealing, and cutting the strap without manual intervention. This tool is designed for high efficiency and speed in packaging operations, making them ideal for use in industries that require frequent and reliable strapping of products, such as manufacturing and logistics.
Features
:- Strap Material Compatibility : This pneumatic strapping machine can accommodate different strap materials such as Polyester (PET) and Polypropylene (PP). This versatility allows users to select the most suitable material based on their packaging needs.
- Air Pressure Requirements : Operating within a specific air pressure range is crucial for optimal performance; this machine require an air pressure between 5 to 7 bar
- Strap Width and Thickness : This machine is designed to work with strap widths of 13mm, 16mm, and 19mm. The thickness of the straps that can be used typically ranges from 1.0mm to 1.5mm, providing flexibility for various applications.
- Ergonomic Design : Designed with user comfort in mind, this machine feature ergonomic handles that reduce strain during extended use.
Usage
:- Preparation : Ensure the machine is properly set up and connected to an air compressor with the appropriate pressure. Select the correct strap width (13mm, 16mm, or 19mm) and material (PP/PET).
- Loading the Strap : Feed the strap through the machine according to the manufacturer’s instructions, ensuring it is threaded correctly for proper tensioning and sealing.
- Adjust Settings : Set the desired tension level and adjust the welding time between 2-5 seconds based on your specific application needs.
- Positioning : Place the items you wish to strap together in a stable position, ensuring they are aligned properly for effective strapping.
- Strapping Process : Activate the machine by pressing the button to start tensioning the strap around your items. Once tensioned, allow the machine to complete its sealing process as per your adjusted settings.
- Finishing Up : After sealing, release the trigger and carefully remove the strapped items from under the machine. Inspect the seal for integrity before moving or storing your strapped packages.
Maintenance :
- Regular Cleaning : Ensure that the machine is cleaned regularly to remove dust, debris, and any strap remnants. This helps maintain optimal performance and prevents jams.
- Inspection of Components : Periodically inspect key components such as the air supply system, tensioning mechanism, and seals for wear or damage.
Applications
:- Construction Industry : In construction, it can be used to strap materials like timber and other building supplies, facilitating easier handling and storage.
- Manufacturing Processes : It is also applicable in manufacturing environments where products need to be bundled or packaged efficiently before distribution.
- Packaging of Heavy Goods : It is suitable for strapping heavy items such as bundles, pipes, coils, and bars, ensuring they are tightly secured for transportation.
- Logistics and Shipping : The machine is widely utilized in logistics to prepare goods for shipping by providing a reliable method of bundling products together, which helps in maintaining their integrity during transit.
