Short Description
Horizontal Digital SS Band Sealing Machine
Sealing Speed 0-12 m/min
Sealing Width 6-12 mm
Country of origin: India
Specification
  • Brand: Generic ( Made in India )
  • Weight (Approx.) : 13 kg
  • Material : Stainless Steel
  • Power : 500 W
  • Voltage : 220 V
  • Frequency : 50 HZ
  • Sealing Speed : 0-12 m/min
  • Sealing Width : 6-12 mm
  • Temperature Range : 0-300°C
  • Control Panel : Digital
  • Max. Conveyor Loading : 3 kg
  • Dimension : 850 x 420 x 360 mm

NOTE :
  • Conveyor belt color may vary
  • Suitable for High Graded Pouches, just like laminated Pouches.
Description

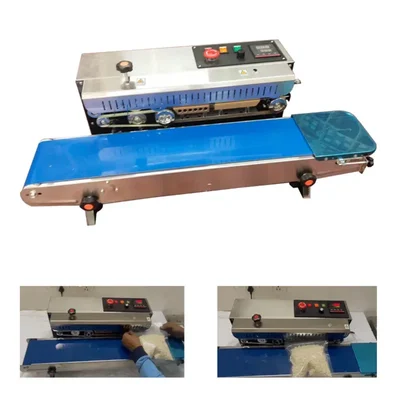

This Band Sealing Machine Digital SS Horizontal is a type of continuous band sealer used for sealing high graded pouches, such as laminated pouches. It features a motorized conveyor belt with guides for consistent sealing, constant temperature control, and adjustable variable speed regulation. It is possible to continually seal plastic films composed of various components with this continuous horizontal band sealer. It is very easy to operate and also suitable for sealing small packages in foodstuffs, general merchandise, medicine, spices, seeds, and chemical industries. All the operator needs to do is feed bags into the machine. Filled bags move along a motorized conveyor belt. The machine guides the top of each bag through the sealing process. and the bag is sealed properly.

Features

 :
  • Easy to operate
  • Fast packing machine
  • Time saver
  • Different types of high graded pouches can be sealed
  • Product marked as intelligent advance packing machinery section with best appropriate performance.

Applications

 :
  • Retail Packaging : Retailers often use horizontal band sealing machines to seal product packages before they are displayed on shelves or shipped to customers. These machines help in enhancing the presentation of products while also providing protection against tampering.
  • Food Packaging : Horizontal band sealing machines are extensively used in the food industry for sealing bags containing snacks, candies, frozen foods, and other perishable items. The airtight seal provided by these machines helps in maintaining the freshness and quality of the packaged food products.
  • Pharmaceutical Packaging : In the pharmaceutical sector, horizontal band sealing machines play a crucial role in sealing medication pouches and packets. The secure seals created by these machines help in preserving the integrity of the medicines and protecting them from external contaminants.
  • Cosmetics Industry : Horizontal band sealing machines are utilized in cosmetic manufacturing facilities for sealing pouches containing various beauty and personal care products.

Usage

 :
  • Preparation : Ensure the machine is placed on a stable, flat surface. Plug in the sealer and turn it on, allowing it to heat up for a few minutes.
  • Setting Temperature : Adjust the temperature setting according to the type of material being sealed.
  • Feeding the Material : Place the bags or pouches that need sealing on the conveyor belt. Ensure they are aligned properly for consistent sealing.
  • Sealing Process : As the bags move through the sealer, they will be heated and sealed automatically. Monitor the process to ensure proper sealing without overheating.
  • Cooling : After passing through the sealing area, allow sealed bags to cool down before handling them further.

Maintenance :
  • Regular Cleaning : Ensure that the sealing area is cleaned regularly to prevent contamination and buildup of residues.
  • Electrical Components Inspection : Periodically inspect electrical connections, wires, and components for any signs of wear or damage.
  • Routine Testing : Conduct routine tests with sample materials to ensure that the machine is functioning correctly and producing quality seals.
