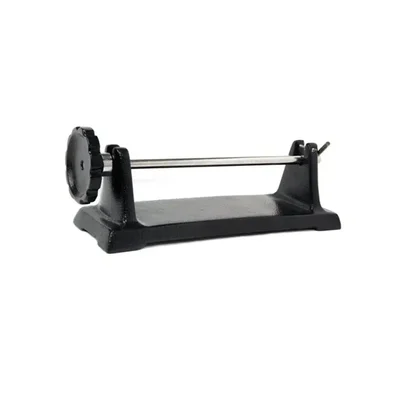

Reliant Lab Bar Breaking Apparatus
For Materials Testing Education

Country of origin: India

Brand: Reliant Lab

Base Material : Cast Iron
Rod Material : Cast Iron
Rod Size : 75 x 6 mm
Overall Size : 330 x 60 x 60 mm

The Reliant Lab Bar Breaking Apparatus is a classic strength of materials demonstration tool used to illustrate the immense forces generated by thermal expansion and contraction. The device consists of a heavy cast iron frame with a thick steel rod that is heated and then secured with a brittle "cast iron pin" or "breaking bar." As the heated rod cools and contracts, it exerts a massive longitudinal force on the pin, eventually snapping it with a loud, dramatic crack. This provides a visceral, high impact lesson on the mechanical power of thermal physics.

Features

Heavy Duty Cast Iron Frame: A rigid, high mass base designed to withstand the extreme mechanical stress of the contracting rod without deforming.
High Tensile Steel Rod: A precision machined rod with a threaded end and a large wing nut to allow for manual tensioning before cooling.
Integrated Heating Source: Usually used in conjunction with a Bunsen burner or high output blowtorch to achieve significant thermal expansion of the main rod.
Safety Shield Compatibility: The design often includes mounting points for a transparent protective shield to contain the fragments of the pin upon breaking.
