Brand : UJALA
Ujala 5 kw Battery Less Solar Inverter | Designed for Residential Use | Comes with 2 year Warranty
SKU : TI-U5-36801
MRP : ₹45999
₹41999
9% OFF!
-
1
+
815 people have viewed this recently
Get Extra ₹630 OFF on Prepaid Orders
Delivery By: Oct 20 - Oct 22
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description

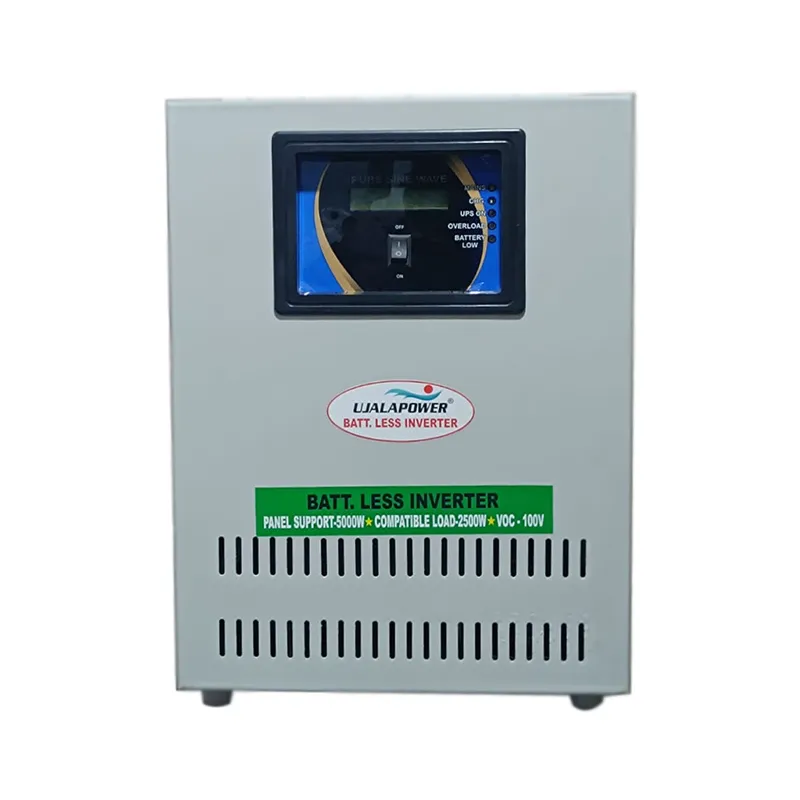

Ujala 5 kw Battery Less Solar Inverter
Designed for Residential Use
Comes with a 2-year Warranty
Country of origin: India
Specification
  • Brand: UJALA
  • Weight (Approx.) : 30.72 kg
  • Model No: BLI 5000
  • Display Type: LCD
  • Capacity: 5 kV
  • Dimensions (LXWXH) MM : 410 X 290 X 440
  • Clearance on all sides for Installation : Recommended 1 ft.

Output Mode:
  • Output Voltage at No Load: 230 V +/- 10 V
  • Output Frequency: 50.0±0.5 Hz
  • Output Waveform: Pure Sine Wave

Solar Parameters (100 volt):
  • Solar Panels VOC: 100 volt
  • Solar Low Voc Cutt Off: 50 V +/- 2 V
  • Overload: 30 AMP +/- 2 AMP
  • Running Load: 26 AMP +/- 2 AMP
Solar Parameters (150 volt):
  • Solar Panels VOC: 150 volt
  • Solar Low Voc Cutt Off: 80 V +/- 2 V
  • Overload: 25 AMP +/- 2 AMP
  • Running Load: 22 AMP +/- 2 AMP
Solar Parameters (300 volt):
  • Solar Panels VOC: 300 volt
  • Solar Low Voc Cutt Off: 150 V +/- 2 V
  • Overload: 12 AMP +/- 2 AMP
  • Running Load: 10 AMP +/- 2 AMP

Protections :
  • Overload : Yes
  • Over Temperature : Yes
  • Short Circuit : Yes

Wire Connection Formation
  • Input (from right to left) : Earth/Neutral/Phase
  • Solar (from right to left) : PV- / PV+
  • Output (from right to left) : Earth/Neutral/Phase
  • MCB : The MCB available for Solar Pv Modules
Note: Due to continuous product improvements, the specifications may be Upgraded.
Note: 2-year warranty covers only manufacturing defects.
Description
A battery-less off-grid inverter is a type of inverter that operates independently of the utility grid but does not require battery storage. This might seem counterintuitive initially, as traditional off-grid systems heavily rely on batteries to store energy for use during non-sunny periods or at night. However, the battery-less design presents a streamlined and often more cost-effective solution for specific applications.

Features

 :
  • Direct Power Usage: It directly uses the electricity generated by solar panels without storing it in batteries
  • Cost-Effective: Eliminates the cost and maintenance associated with battery storage.
  • Simplicity: Simplifies the overall system design by removing the need for battery management systems
  • Battery-less Off-Grid solar Inverter Applications and Benefits
  • Battery-less off-grid inverters are particularly useful in scenarios where there is a consistent and immediate demand for power during sunlight hours

Applications

 :
  • Remote Locations: Areas where extending the grid is impractical
  • Agricultural Uses: Such as powering water pumps during daylight hours
  • Temporary Installations: Construction sites or events that require power for a limited period
