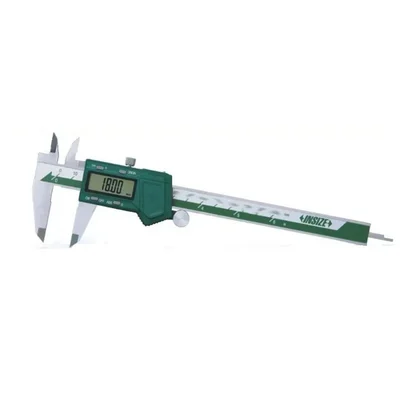

Insize 200 mm Stainless Steel Digital Caliper, 1103-200 Model, for Measuring Objects

• Model No : 1103-200
• Measurement Range : 0 - 203.2 mm
• Resolution : 0.01 mm
• Measurement Range : 0-8 inch (0 to 20.32 cm)
• Resolution : 0.0005 Inch (0.00127 cm)
• Material : Stainless Steel
• Upper Jaw Length : 19 mm
• Power Supply : Battery CR2032
• Overall Length : 286 mm
• Display : LCD
• Accuracy : ±0.03 mm
• Lower Jaw Length : 50 mm

Features

• Construction : Made of high-quality stainless steel with a smooth-action thumb roller for fine adjustments.
• Absolute system : Low power consumption and long battery life. It retains the origin point so you can start measuring immediately upon "waking" the device
• Buttons : mm/inch, ABS/REL, on/off, origin set.
• Automatic power off, move the digital unit to turn on power
• Data output : Features a port for data transmission

Applications

• CNC & Machining: Measuring part thickness and hole diameters with high repeatability.
• Quality Control: Rapidly checking batches of components and logging data directly to a PC using the data output port
• Engineering Design: Verifying prototypes against CAD models
