Brand: Generic ( Made in India )

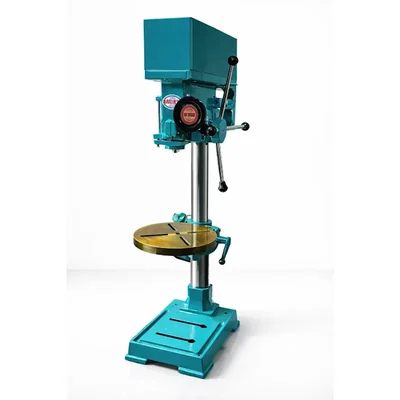

Heavy Duty 25mm 8-Speed pillar drill machine with Motor
SKU: DP-SI-22216
3296 people have viewed this recently
Estimated Delivery By: Mar 23 - Mar 25
MRP : ₹71988 ₹59990
17% OFF!
3296 people have viewed this recently Estimated Delivery By: Mar 23 - Mar 25 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹59990 (Including GST)
MRP : ₹71988
17% OFF!
Get Extra ₹900 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
25mm heavy duty 8-speed pillar drill machine with 1HP 3Ph motor compatibility, 1300mm pillar, and 139mm spindle travel for precise industrial drilling.
Country of origin: India
Specifications
- Brand: Generic ( Made in India )
- Power : 1 hp
- Weight (Approx.) : 114 kg
- Drilling Capacity : 25 mm
- No-Load Speed : 3000 rpm
- Drilling Capacity: 25mm (mild steel, max).
- Spindle Speeds: 8 speeds (typically 100-3000 RPM, belt-driven).
- Spindle Travel: 139mm.
- Pillar Height: 1300mm.
- Pillar Diameter: 75mm.
- Pillar to Table Center: 213mm.
- Table Size: 300 x 300mm (with T-slots).
- Motor Required: 1HP, 3-phase induction (1440 RPM standard).
- Base Size: 425 x 300mm.
- Total Weight: Approx. 100kg.
- Head Tilt: 360° swivel for angled drilling.
- Chuck Capacity: Up to 25mm (keyed drill chuck).
- Spindle Taper: MT3 or JT33 standard.
- Overall Height: 1300mm (floor-to-spindle).
Description
For industrial workshops, this sturdy 25mm heavy-duty pillar drill machine provides precise drilling. It manages difficult materials on a sturdy 1300mm pillar and 300x300mm table with 8-speed spindle control, 139mm travel, and compatibility with a 1 HP 3-phase motor. designed to last, weighing 100 kg and having pillars that are 75 mm in diameter.
Features
:- An 8-speed gearbox allows for flexible RPM modification for a variety of drilling jobs.
- Deep-hole operations are made possible by the extra-long 139mm spindle travel.
- For precise holes, the heavy 100 kg cast iron structure reduces vibration.
- A pillar that is 75 mm thick guarantees rigidity when drilling with high torque.
- T-slots on a large 300x300mm table allow for safe clamping of workpieces.
- The pillar-to-table clearance of 213mm accommodates large workpieces.
- For accurate placement, a smooth rack-and-pinion table height adjustment is used.
- Base-mounted design for shop floor stability with a 425x300mm footprint.
Applications
:- Metal fabrication shops for accurate steel plate hole making.
- Engine blocks and chassis are drilled at auto repair shops.
- Woodworking for large pieces of plywood or wood.
- Workshops for maintenance and repairs of machinery.
- General engineering for template work and jig drilling.
Usage
:- Use anchor bolts to firmly install the machine through the 425x300mm base on a level, stable floor.
- In accordance with electrical safety regulations, attach a 1 HP three-phase motor to the headstock pulley system.
- Depending on the material and drill bit size, modify the 8-speed belt setup to get the necessary RPM.
- To get 213mm of pillar-to-table clearance, raise or lower the 300x300mm table using a rack and pinion.
- Securely clamp the workpiece onto the table T-slots and insert the proper drill bit into the 25mm chuck.
- During drilling, engage the quill feed handle to adjust the 139mm spindle travel.
- For angled holes, use a 360° head swivel; for metalwork, use cutting fluid.
- Lubricate moving parts frequently and clean the table, belts, and chuck after each usage.
