Brand: CRI

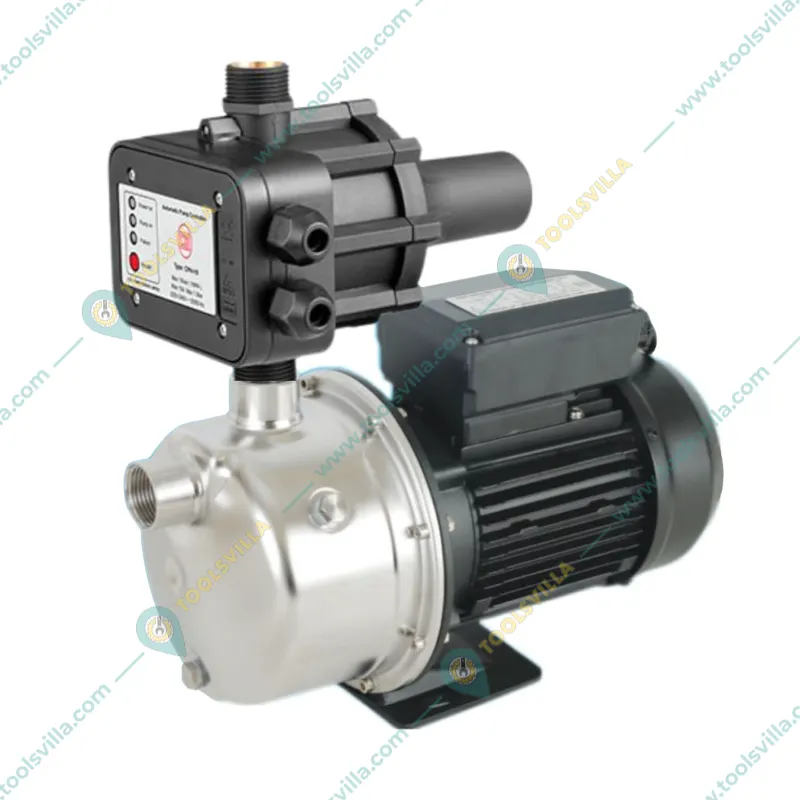

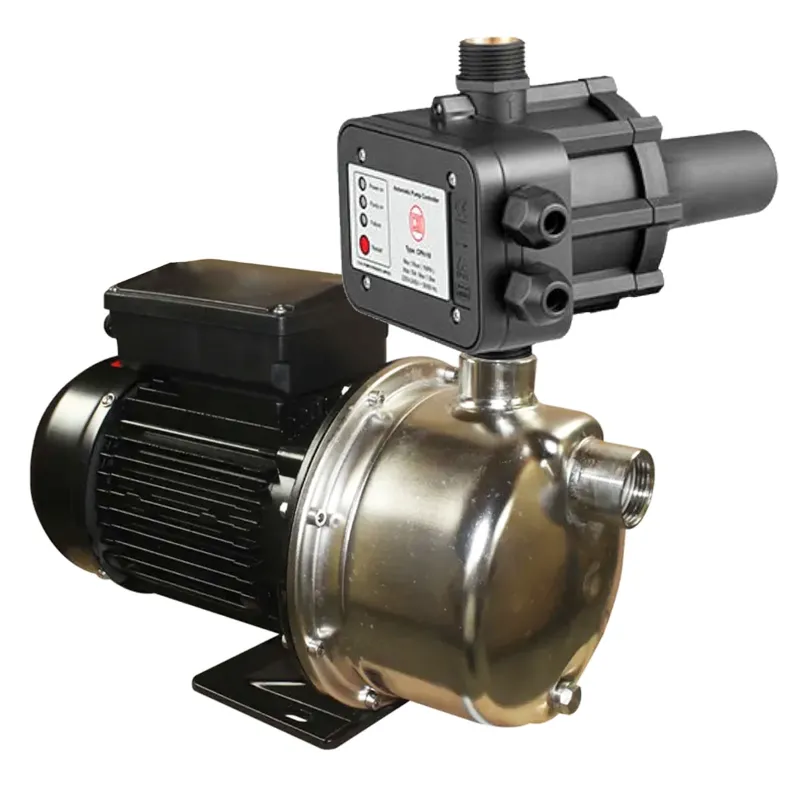

CRI 0.5Hp Single Phase SS Pressure Booster Pump With Automatic Pump Controller, 36m Head (JTS Series)- 1 Year Warranty
SKU: TI-C0-20839
Delivery By: Jun 25 - Jun 27
MRP : ₹15000 ₹11300
25% OFF!
Delivery By: Jun 25 - Jun 27 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹11300 (Including GST)
MRP : ₹15000
25% OFF!
Get Extra ₹170 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
C.R.I. 0.5 Hp 1Ph Water Pressure Booster Pump With Controller
36m Max. Head, 48 LPM Max. Discharge
1 Year Warranty
Country of origin: India
Specifications
- Brand: CRI
- Power : 0.5 hp
- Weight (Approx.) : 13 kg
- Flow Rate : 48 lpm
- Head : 36 meter
- Series : JTS Series
- Product Type : Water Pressure Booster Pump
- Brand : C.R.I.
- Wattage : 0.37 kW
- Electricity Connection : Single Phase
- Rated Voltage : 220 Volt, 50 Hz AC Power Supply
- Nominal Pump Size (Suction X Delivery) : 25X25 mm
- Head Range : 36 to 7 Meter (118 to 22 Feet)
- Discharge Range : 0 to 48 LPM (0 to 2880 LPH)
- Max. Suction Lift : Upto 8 Meter
- Speed : 2900 RPM
- Degree Of Protection : IP 54
- Class Of Insulation : B
- Direction Of Rotation : Clockwise viewed from driving end
- Type Of Duty : S1
- Max. Liquid Temperature : +5°C to +60°C
- Max. Ambient Temperature : 40°C
Material Of Construction :

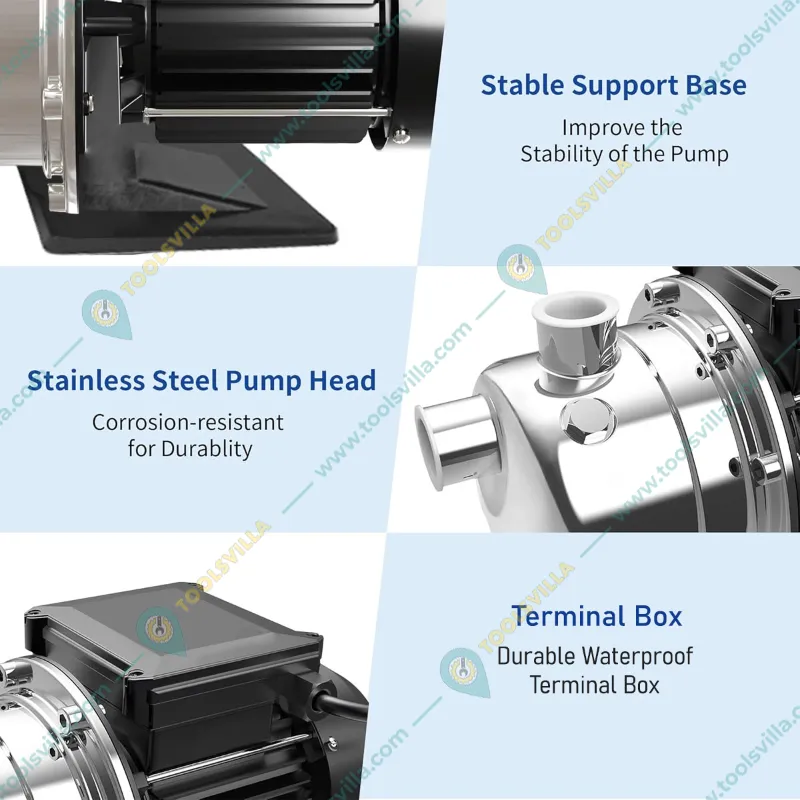

- Pump Casing : SS 304
- Motor Frame : Aluminium
- Impeller : SS 304
- Shaft : SS 304
- Shaft Sealing : Mechanical Seal (Carbon & Ceramic)
Description
C.R.I. S.S. JTS Series booster pumps are carefully designed to give best hydraulic efficiency and suction lift characteristics. Most modern and highly sophisticated machinery and technology are employed in the manufacture of these pumps, using quality raw material, seals and ball bearings to ensure long life. Dynamically balanced rotor ensures vibration free and noise free operation. All single phase pumps are in-built with thermal overload protector to prevent overload. High operating efficiency of these pumps result in low power consumption.
Features
:- In built Thermal Overload Protection
- Hygienic pumping system
- Backpull-out design for easy servicing and repair
Accessories

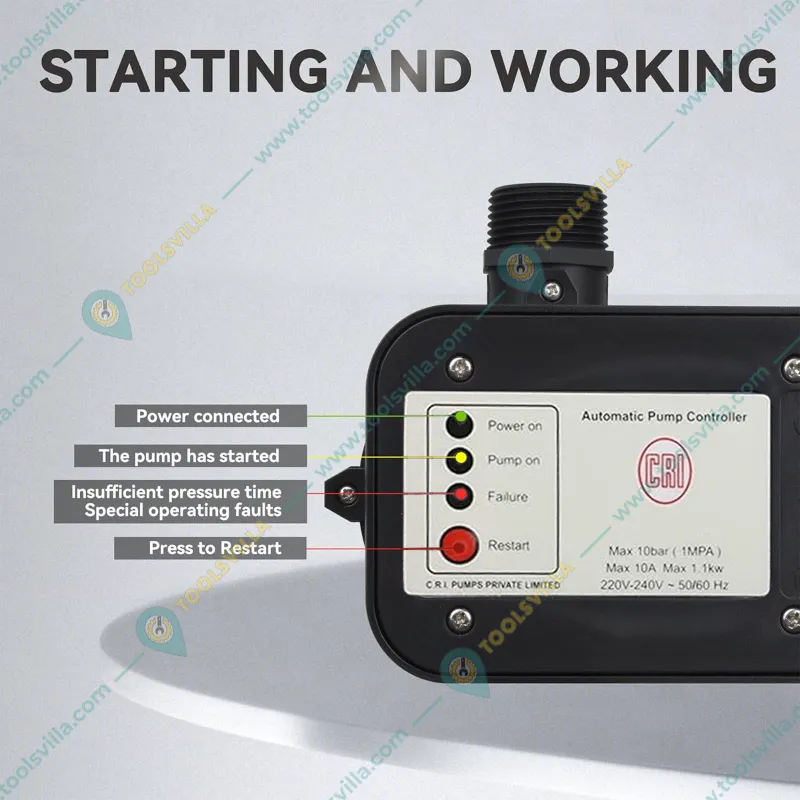

:- Automatic Pump Controller
Applications
:- Domestic Water Boosting
- Food Processing
- Industrial Water System
- Gardening
- Car Washing
WARRANTY :
- 1 Year Warranty on Manufacturing Defects Only.
