Brand : CRI

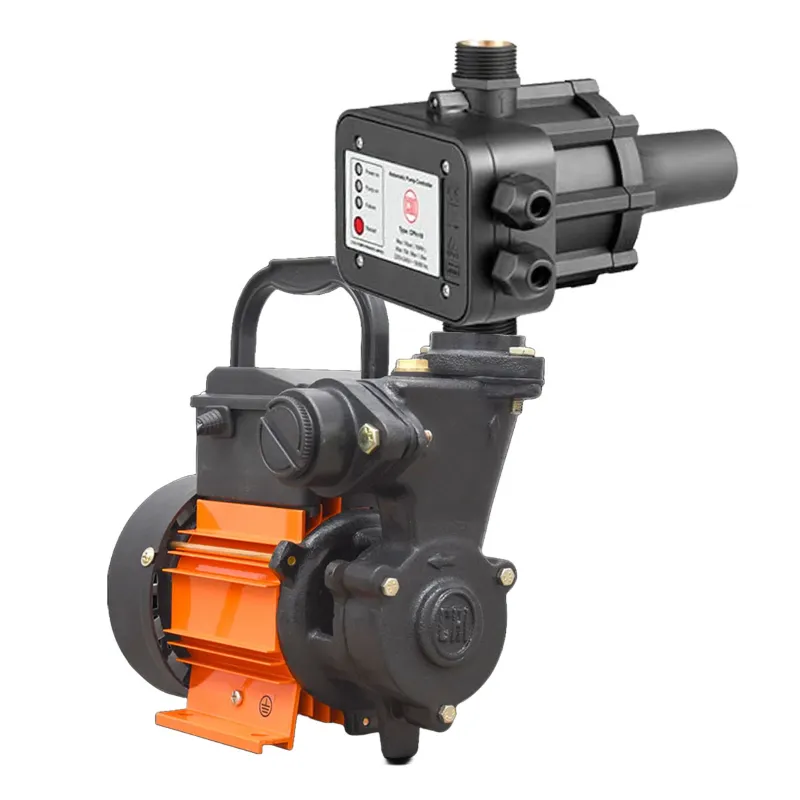

CRI 0.5 Hp Single Phase Copper Winding Booster Pump With Automatic Pump Controller, 25m Head (DORA 50) - 1 Year Warranty
SKU : TI-C0-20018
MRP : ₹6900
₹5900
14% OFF!
-
1
+
Get Extra ₹89 OFF on Prepaid Orders
Delivery By: Jun 20 - Jun 22
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
CRI 0.5 Hp 1Ph Water Pressure Booster pump With Controller
25m Max. Head, 2016 LPH Max. Discharge
1 Year Warranty
Country of origin: India
Specification
  • Brand: CRI
  • Power : 0.5 hp
  • Weight (Approx.) : 9 kg
  • Flow Rate : 50 lpm
  • Head : 25 meter
  • Model No. : DORA 50
  • Product Type : Water Pressure Booster pump
  • Brand : CRI
  • Wattage : 0.37 kW
  • Electricity Connection : Single Phase
  • Rated Voltage : 220-240 Volt, 50 Hz, AC Power Supply
  • Pipe Size (Suction X Delivery) : 25X25 mm
  • Suction Capacity : 8 Meter
  • Head Range : 6 to 25 Meter (20 to 82 Feet)
  • Discharge Range : 3000 to 1720 LPH
  • Winding Material : Copper
  • Speed : 2880 RPM

Controller Specification :
  • Controller Max. Pressure : 10 Bar
  • Max. Power Upto : 1.5 kW
  • Rated Voltage : 220-240 Volt

Material Of Construction :
  • Pump Casing : Cast Iron
  • Impeller : High Tensile Brass
  • Rotor : Aluminium Die Cast
  • Motor Shaft : SS 410
  • Cooling Fan : Poly Propylene - Co Polymer
  • Mechanical Seal : Carbon & Ceramic
Description
The purpose of this water pressure booster pump is to raise the flow rate and water pressure in a plumbing system. It is especially helpful when there is low water pressure, which results in insufficient water flow for regular activities like taking a shower or watering the yard. The booster pump circulates water throughout the building or facility by pressurizing it after it has been drawn from a source, such as a storage tank or municipal supply.

Features

 :
Pump Features :
  • Built-in with imported Thermal Overload Protector.
  • Specially designed for wide voltage operation.
  • Powder coated multi-color stator body.
  • Sturdy and compact
  • Double sealed ball bearing, so no need of external lubrication.

Controller Features :
  • Automatic ON & Off system
  • Compact & silent operation
  • Protection against dry running
  • Inbuilt thermal overload protection
  • Built in Reset button

Accessories

 :
  • Automatic Pump Controller

Applications

 :
  • It is beneficial to utilize this pressure booster pump in both home and commercial environments. They are frequently utilized in multi-story structures, high fluid pressure industrial facilities, irrigation systems, filtering procedures, and any other application where sufficient water pressure is necessary.

WARRANTY :
  • 1 Year Warranty on Manufacturing Defects Only.
