Brand : CRI

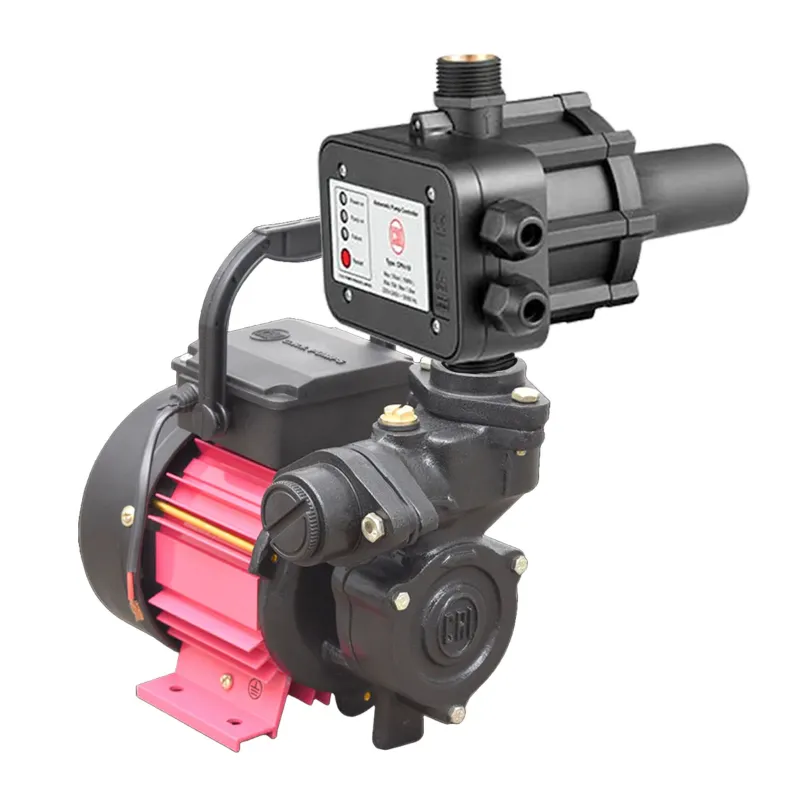

CRI 0.5 Hp Single Phase Copper Winding Booster Pump With Automatic Pump Controller, 25m Head(SHINE 50) - 1 Year Warranty
SKU : TI-C0-20047
MRP : ₹8500
₹6299
26% OFF!
-
1
+
Get Extra ₹94 OFF on Prepaid Orders
Delivery By: Jun 20 - Jun 22
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
CRI 0.5 Hp 1Ph Water Pressure Booster pump With Controller (SHINE 50)
25m Max. Head, 3050 LPH Max. Discharge
1 Year Warranty
Country of origin: India
Specification
  • Brand: CRI
  • Power : 0.5 hp
  • Weight (Approx.) : 10 kg
  • Flow Rate : 34 lpm
  • Head : 25 meter
  • Model No. : SHINE 50
  • Product Type : Water Pressure Booster pump
  • Brand : CRI
  • Wattage : 0.37 kW
  • Electricity Connection : Single Phase
  • Rated Voltage : 220-240 Volt, 50 Hz, AC Power Supply
  • Pipe Size (Suction X Delivery) : 25X25 mm
  • Suction Capacity : 8 Meter
  • Head Range : 6 to 25 Meter (20 to 82 Feet)
  • Discharge Range : 2088 to 760 LPH
  • Winding Material : Copper
  • Speed : 2880 RPM

Controller Specification :
  • Controller Max. Pressure : 10 Bar
  • Max. Power Upto : 1.5 kW
  • Rated Voltage : 220-240 Volt

Material Of Construction :
  • Pump Casing : Cast Iron
  • Impeller : High Tensile Brass
  • Rotor : Aluminium Die Cast
  • Motor Shaft : SS 410
  • Cooling Fan : Poly Propylene - Co Polymer
  • Mechanical Seal : Carbon & Ceramic
Description
The purpose of this water pressure booster pump is to raise the flow rate and water pressure in a plumbing system. It is especially helpful when there is low water pressure, which results in insufficient water flow for regular activities like taking a shower or watering the yard. The booster pump circulates water throughout the building or facility by pressurizing it after it has been drawn from a source, such as a storage tank or municipal supply.

Features

 :
Pump Features :
  • Built-in with imported Thermal Overload Protector.
  • Specially designed for wide voltage operation.
  • Powder coated multi-color stator body.
  • Sturdy and compact
  • Double sealed ball bearing, so no need of external lubrication.
Controller Features :
  • Automatic ON & Off system
  • Compact & silent operation
  • Protection against dry running
  • Inbuilt thermal overload protection
  • Built in Reset button

Accessories

 :
  • Automatic Pump Controller

Applications

 :
  • It is beneficial to utilize this pressure booster pump in both home and commercial environments. They are frequently utilized in multi-story structures, high fluid pressure industrial facilities, irrigation systems, filtering procedures, and any other application where sufficient water pressure is necessary.

WARRANTY :
  • 1 Year Warranty on Manufacturing Defects Only.
