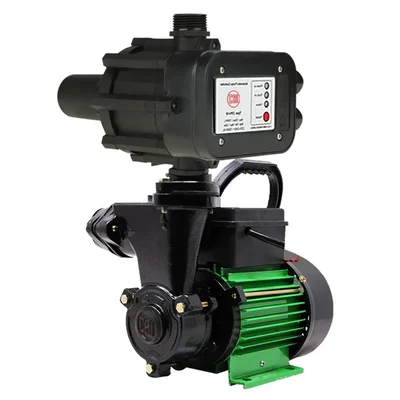

CRI 0.5 Hp Single Phase Copper Winding Booster Pump With Automatic Pump Controller, 25m Head (DINO) - 1 Year Warranty

Brand: CRI

CRI 0.5 Hp Single Phase Copper Winding Booster Pump With Automatic Pump Controller, 25m Head (DINO) - 1 Year Warranty

Name: CRI 0.5 Hp Single Phase Copper Winding Booster Pump With Automatic Pump Controller, 25m Head (DINO) - 1 Year Warranty
Brand: CRI
SKU: TI-C0-20052
Price: 5250 INR
Availability: OutOfStock
Rating: 5.00 (1 reviews)

SKU: TI-C0-20052

MRP : ₹6700 ₹5250

22% OFF!

896 people have viewed this recently

Get Extra ₹79 OFF on Prepaid Orders

Delivery By: Dec 19 - Dec 21

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹5250 (Including GST)

MRP : ₹6700

22% OFF!

Get Extra ₹79 OFF on Prepaid Orders

Show Similar

Notify Me

CRI 0.5 Hp 1Ph Water Pressure Booster pump With Controller

25m Max. Head, 2100 LPH Max. Discharge

1 Year Warranty

Country of origin: India

Brand: CRI
Power : 0.5 hp
Weight (Approx.) : 8 kg
Flow Rate : 35 lpm
Head : 25 meter

Model No. : DINO
Product Type : Water Pressure Booster pump
Brand : CRI
Wattage : 0.37 kW
Electricity Connection : Single Phase
Rated Voltage : 220-240 Volt, 50 Hz, AC Power Supply
Pipe Size (Suction X Delivery) : 25X25 mm
Suction Capacity : 8 Meter
Head Range : 6 to 25 Meter (20 to 82 Feet)
Discharge Range : 2100 to 600 LPH
Winding Material : Copper
Speed : 2880 RPM

Controller Specification :

Controller Max. Pressure : 10 Bar
Max. Power Upto : 1.5 kW
Rated Voltage : 220-240 Volt

Material Of Construction :

Pump Casing : Cast Iron
Impeller : High Tensile Brass
Rotor : Aluminium Die Cast
Motor Shaft : SS 410
Cooling Fan : Poly Propylene - Co Polymer
Mechanical Seal : Carbon & Ceramic

The purpose of this water pressure booster pump is to raise the flow rate and water pressure in a plumbing system. It is especially helpful when there is low water pressure, which results in insufficient water flow for regular activities like taking a shower or watering the yard. The booster pump circulates water throughout the building or facility by pressurizing it after it has been drawn from a source, such as a storage tank or municipal supply.

Features

Pump Features :

Built-in with imported Thermal Overload Protector.
Specially designed for wide voltage operation.
Powder coated multi-color stator body.
Sturdy and compact
Double sealed ball bearing, so no need of external lubrication.

Controller Features :

Automatic ON & Off system
Compact & silent operation
Protection against dry running
Inbuilt thermal overload protection
Built in Reset button

Accessories

Automatic Pump Controller

Applications

It is beneficial to utilize this pressure booster pump in both home and commercial environments. They are frequently utilized in multi-story structures, high fluid pressure industrial facilities, irrigation systems, filtering procedures, and any other application where sufficient water pressure is necessary.

WARRANTY :
