Brand: CRI

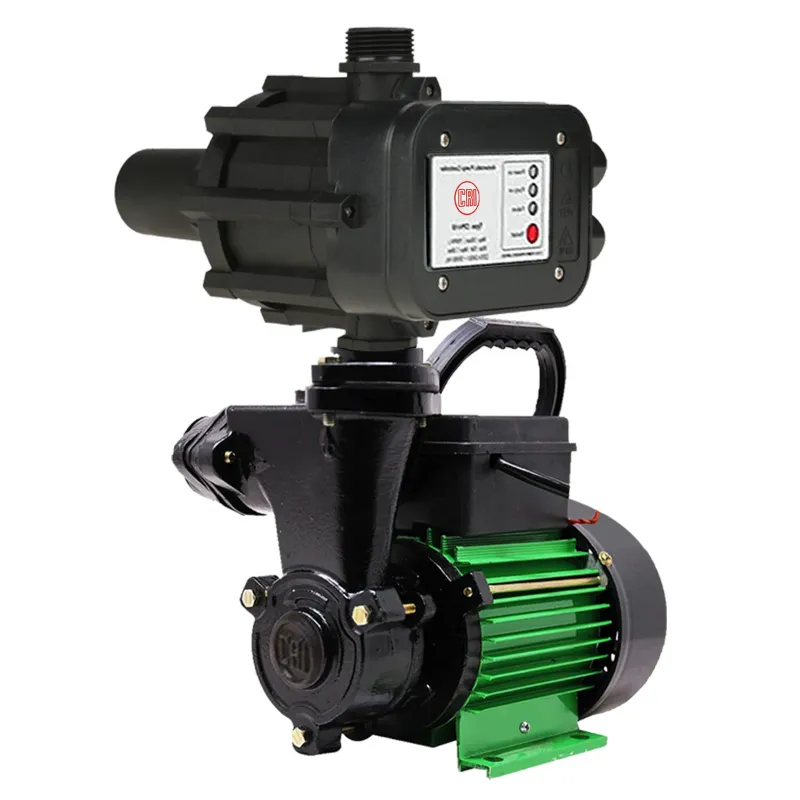

CRI 1 Hp Single Phase Copper Winding Booster Pump With Automatic Pump Controller, 40m Head (DINO SM103) - 1 Year Warranty
SKU: TI-C1-20064
₹6100 (Including GST)
MRP : ₹7900
Get extra ₹92 Discount (On Checkout)
Delivery By: May 27 - May 29
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
CRI 1 Hp 1Ph Water Pressure Booster pump With Controller (DINO SM103)
40m Max. Head, 3100 LPH Max. Discharge
1 Year Warranty
Country of origin: India
Description
The purpose of this water pressure booster pump is to raise the flow rate and water pressure in a plumbing system. It is especially helpful when there is low water pressure, which results in insufficient water flow for regular activities like taking a shower or watering the yard. The booster pump circulates water throughout the building or facility by pressurizing it after it has been drawn from a source, such as a storage tank or municipal supply.
Features
:Pump Features :
- Sturdy and compact
- In-built with Thermal Overload Protection
- Double shielded ball bearing, so no need of external lubrication.
- Powder coated motor body .
- High durability.
Controller Features :
- Automatic ON & Off system
- Compact & silent operation
- Protection against dry running
- Inbuilt thermal overload protection
- Built in Reset button
Specification
:- Brand: CRI
- Power : 1 hp
- Weight (Approx.) : 9.2 kg
- Flow Rate : 51 lpm
- Head : 40 meter
- Model No. : DINO SM103
- Product Type : Water Pressure Booster pump
- Brand : CRI
- Wattage : 0.75 kW
- Electricity Connection : Single Phase
- Rated Voltage : 220-240 Volt, 50 Hz, AC Power Supply
- Pipe Size (Suction X Delivery) : 25X25 mm
- Suction Capacity : 8 Meter
- Head Range : 6 to 40 Meter (20 to 131 Feet)
- Discharge Range : 3100 to 1368 LPH
- Winding Material : Copper
- Speed : 2880 RPM
Controller Specification :
- Controller Max. Pressure : 10 Bar
- Max. Power Upto : 1.5 kW
- Rated Voltage : 220-240 Volt
Material Of Construction :
- Pump Casing : Cast Iron
- Impeller : High Tensile Brass
- Rotor : Aluminium Die Cast
- Motor Shaft : SS 410
- Cooling Fan : Poly Propylene - Co Polymer
- Mechanical Seal : Carbon & Ceramic
Accessories
:- Automatic Pump Controller
Applications
:- It is beneficial to utilize this pressure booster pump in both home and commercial environments. They are frequently utilized in multi-story structures, high fluid pressure industrial facilities, irrigation systems, filtering procedures, and any other application where sufficient water pressure is necessary.
WARRANTY :
- 1 Year Warranty on Manufacturing Defects Only.
