Brand: Kirloskar

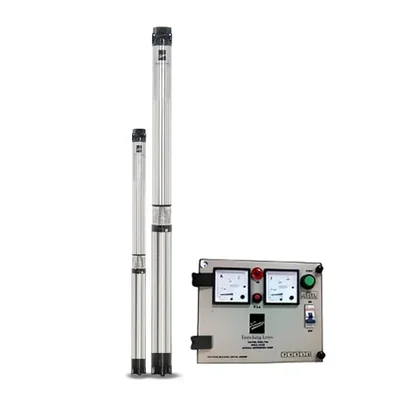

Kirloskar 1.25HP 18 Stage 3" Water Filled 1Phase Submersible Pump with CP, 243ft Head - 1 Year Warranty (KS3D-1318-CP)
SKU: DK-KP-2125
8 people have bought this recently
Delivery By: Dec 13 - Dec 15
MRP : ₹29400 ₹17099
42% OFF!
8 people have bought this recently Delivery By: Dec 13 - Dec 15 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹17099 (Including GST)
MRP : ₹29400
42% OFF!
Get Extra ₹256 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Kirloskar 1.25 HP Single Phase Borewell Submersible Pump, Water Filled
74 Meter Head Range
72 LPM Discharge Rate
Suitable for 3 Inch (75 mm) Borewell
1 Year Warranty
Country of origin: India
Specifications
- Brand: Kirloskar
- Power : 1.25 hp
- Weight (Approx.) : 20.50 kg
- Flow Rate : 72 lpm
- Head : 74 meter
- Model No. : KS3D-1318-CP
- Product Type : Borewell Submersible Pump
- Brand : Kirloskar
- Power Source : Corded Electric
- Wattage : 0.93 kW
- Power :Supply : 160-240V AC Supply
- Electricity Connection : Single Phase
- Type Of Cooling : Water Filled
- Rated Current : 9.7 Amp
- Boring Size : 3 Inch (75 mm)
- Max. Head Range : 243 Feet (74 Meter)
- Outlet Pipe (Size) : 32 mm
- No. of Stages : 18
- Max. Discharge Rate : 72 LPM (4320 LPH)
- Protection : IP 68
- Insulation : B Class
- Winding Material : Copper
Materials of Construction :
- Thrust Bearing : Carbon + Stainless Steel
- Pump Housing : Stainless Steel
- Pump Shaft : Stainless Steel
- Motor Housing : Stainless Steel
- Motor Shaft : Stainless Steel
- Motor/Pump Bushes : Gun Metal
- Impeller : Noryl
- Diffuser : Noryl
- Non Return Valve (NRV) : Cast Iron
- Suction : Cast Iron
Description
A water-filled single-phase submersible pump is an electric pump designed to be fully submerged in fluid, with its motor cooled and lubricated by the surrounding water. It operates on a single-phase alternating current power supply, making it suitable for residential, agricultural, and small-scale industrial applications where only single-phase power is available.
Features
:- Wide Voltage Design : The motor is designed to withstand wide voltage fluctuations from 160 to 240 volts and reduces motor burning in low voltage.
- Design To Prevent Overloading : Lesser chances of motor burning as motor did not get overloaded even if the pump is operated at a head lower than recommended and saving substantial cost from maintenance and breakdown.
- High Efficiency And Energy Saving Design : Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings.
- Dynamically Balanced Rotating Parts : Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained.
- Longer And Trouble Free Life : High grade engineering materials like Graded Cast Iron Components, Stainless Steel Shaft, Noryl Impellers, Bronze Bushes, Heavy duty Carbon + SS Thrust Plate, 99.9% pure Copper Rotor and Winding Wires for longer and trouble free life.
- Advanced Water Cooled Motors Designs : The motor is filled with potable water, protects from overheating and facilitates smoother and trouble free operation for the years.
- Wide Voltage Motor Designs With 100% Copper Rotor : Motors are designed with extra overload capacities, more water spaces and engineered with 100% pure Electro Grade Copper performs well in low voltage with minimum discharge drops and suitable for wide voltage applications.
- Easy Maintainable Designs : Easy maintainable design and better interchangeability of components so that pump can be serviced even at remote locations by semi-skilled technicians.
Applications
:- Domestic and community water supply.
- Rural water supply
- Gardening and small farm irrigation.
- Construction site.
- Water supplies for high rise building.
Warranty :
- One year onsite warranty.
