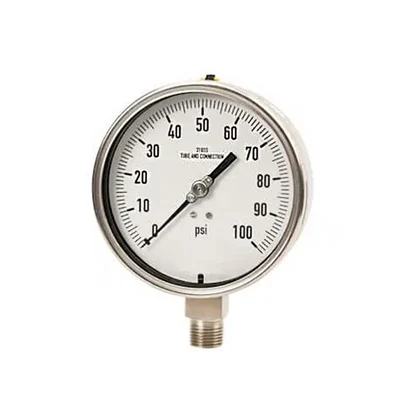

Reliant Lab Bourdon Gauge

For Chemical Processing and Fluid Mechanics Laboratories

Country of origin: India

Brand: Reliant Lab

Product Quantity : 1 Piece
Circular Gauge Diameter : 100 mm
Depth : 400 mm

The Reliant Lab Bourdon Gauge is a precision-engineered pressure measuring instrument designed for both industrial monitoring and educational demonstrations. Utilizing the classic Bourdon tube principle, this gauge converts internal pressure into mechanical displacement via a C-shaped, high-elasticity metallic tube. As fluid enters the tube, it tends to straighten, moving an integrated pointer across a calibrated scale with exceptional linearity. Encased in a robust, corrosion resistant housing with a clear, shatter-proof dial face, the Reliant Lab model is favored by laboratories and technical institutes for its reliability, ease of calibration, and ability to measure both liquid and gaseous pressures without the need for external power.

Features

High Precision C-Tube Element: Crafted from premium phosphor bronze or stainless steel to ensure repeatable accuracy and resistance to elastic fatigue.
Corrosion Resistant Housing: Enclosed in a heavy duty die cast aluminum or stainless steel case, protecting the internal linkage from dust and moisture.
Frictionless Linkage Mechanism: Utilizes a high grade sector and pinion gear system to provide smooth, jitter-free pointer movement even under fluctuating pressures.
Zero Adjustment Screw: Equipped with an easy access external calibration screw to ensure the gauge remains accurate over long term use.
