Brand: Bluepoint

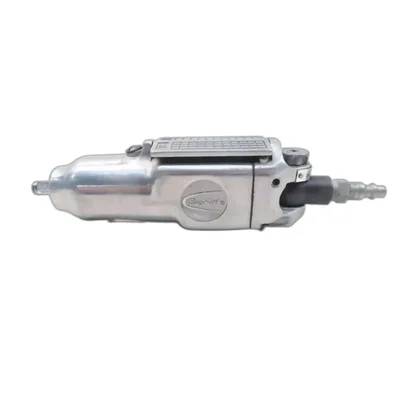

Bluepoint 3/8 Inch Heavy Duty Compact Butterfly Style Air Impact Wrench (AT351)
SKU: TI-XP-46264
Delivery By: Dec 9 - Dec 11
MRP : ₹16752 ₹13960
17% OFF!
Delivery By: Dec 9 - Dec 11 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹13960 (Including GST)
MRP : ₹16752
17% OFF!
Get Extra ₹209 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Bluepoint 3/8 Inch Air Impact Wrench
Heavy Duty Compact Butterfly Style
Country of origin: China
Specifications
- Brand: Bluepoint
- Weight (Approx.) : 1.2 kg
- No-Load Speed : 9700 rpm
- Square Drive Size : 0.37
- Air Pressure : 6.3 bar
- Max. Torque : 237 nm
- Model No. : AT351
- Blows per minute : 1200
- Air Consumption : 71 LPM
- Air Inlet : 1/4"-18 NPT
- Recommended Hose Size : 3/8 Inch
- Vibration Level : 3.09 m/s²
- Sound Level : 109.2 dBa
- Length : 194 mm
Description
Bluepoint AT351 is a compact, heavy‑duty 3/8 inch butterfly‑style air impact wrench designed for small‑engine, automotive, and bench work where fast, one‑handed control and good torque are needed in tight spaces. It combines a 3/8 inch square drive, compact body, and butterfly throttle with a rotary air motor and impact mechanism to deliver strong, controllable blows at around 9700–11000 RPM no‑load speed.
Features
:- Built-in air inlet swivel
- 8 position power regulator
- Rotary action air motor is ball bearing mounted for balance, speed and power
- Ideal tool for small engine repair and bench work
Applications
:- Small‑engine and motorcycle repair : Removing and installing fasteners on crankcases, covers, clutches, and small drivetrain components.
- Automotive service : Work on tight engine‑bay or under‑dash fasteners, brackets, and assemblies where a full‑size pistol‑grip impact is too large.
- Bench and assembly work : Fixtures, jigs, equipment housings, and maintenance tasks requiring frequent fastening/loosening of M8–M12 fasteners.
- Industrial and plant maintenance : Compact torque tool for machinery, pumps, and gearboxes in locations with limited access.
Usage
:- Connect the wrench to a clean, regulated compressed‑air line (typically about 6.2–6.3 bar / 90 psi at the tool) using a suitable hose and coupler; confirm sufficient CFM capacity.
- Fit an impact‑rated 3/8 inch socket fully on the square drive, place it squarely on the fastener, and use the butterfly lever to select direction and adjust speed/power.
- Start with a lower power setting using the 8‑position regulator and use short bursts to avoid over‑tightening; verify critical joints with a torque wrench.
- Avoid extended free‑running at full speed; lubricate regularly with a few drops of air‑tool oil in the air inlet and ensure the airline is drained of moisture.
- After use, disconnect the air supply, wipe the tool clean, and store it in a dry toolbox or case.
