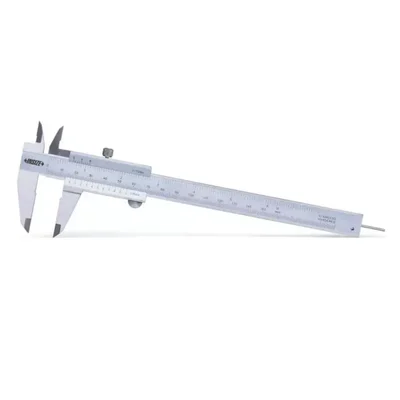

Insize 150 mm Round Depth Bar Vernier Caliper, 1202-150 Model, Stainless Steel Body

• Model No : 1202-150
• Measurement Range : 0-150 mm
• Resolution : 0.05 mm
• Lower Jaw Length : 40 mm
• Upper Jaw Length : 15.5 mm
• Material : Stainless Steel
• Overall Length : 235 mm
• Accuracy : ±0.05 mm

Features

• Round Depth Bar: It is perfect for capturing depth in small-aperture holes.
• Material: Constructed from hardened Stainless Steel, ensuring the tool remains rigid and rust-resistant over a long lifespan
• Satin Chrome Finish: The reading scales are satin chrome-plated to provide a high-contrast, glare-free surface, making it easier to read the engraved graduations under bright shop lights.

Applications

• Small Hole Inspection: Used to measure the depth of tiny drilled holes or blind bores where a standard depth bar is too wide to enter.
• Narrow Grooves: Ideal for checking the depth of internal snap ring grooves or O-ring seats in mechanical components.
• Machining & Metalworking: Frequently used by machinists for secondary operations where verifying the depth of precision-drilled recesses is critical.
• Jewelry & Watchmaking: Its delicate round probe is highly effective for measuring miniature cavities in watches and high-end jewelry.
