CRI 1 Hp Single Phase Centrifugal Monoblock Pump
33m Max. Head, 9000 LPH Max. Flow
1 Year Warranty
33m Max. Head, 9000 LPH Max. Flow
1 Year Warranty
Brand : CRI

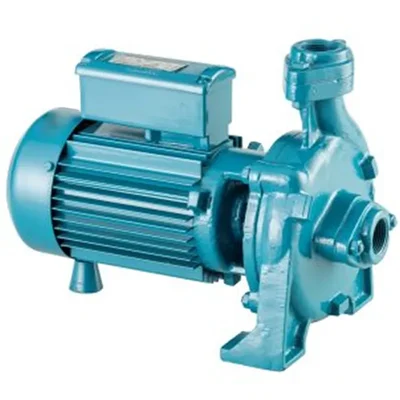

CRI 1Hp Single Phase Centrifugal Monoblock Pump, 32x25mm Pipe Size, 33m Max Head, 9000LPH (VIRAT 1025H)-1 Year Warranty
SKU : TB-CR-41063
MRP : ₹14500
₹10499
28% OFF!
-
1
+
Delivery By: Jul 23 - Jul 25
Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
Short Description
Country of origin: India
Specification
- Brand: CRI
- Power : 1 hp
- Weight (Approx.) : 17 kg
- Flow Rate : 150 lpm
- Head : 33 meter
- Model No. : VIRAT 1025H
- Product Name : Centrifugal Monoblock Pump
- Rated Voltage : 220 to 240 Volt, 50 Hz, AC Power Supply
- Electricity Connection : Single Phase
- Wattage : 0.75 kW
- Pipe Size : 32 x 25 mm (1.25 x 1 inch)
- Head Range : 33 to 26 Meter (108 to 85 Feet)
- Discharge Range : 0 to 9000 LPH (0 to 150 LPM)
- Speed : 2880 RPM
- Maximum Suction Lifting Capacity : 7 Meter (22 Feet)
- Class of Insulation : B
- Max. Ambient Temperature : 40 °C
- Sealing : Mechanical Sealing
- Type of Duty : S1 (Continuous)
- Method of Starting : Permanent Split Capacitor (PSC)
- Direction of Rotation : Clockwise from Driving End
Description
C.R.I. Centrifugal Monoblock pumpsets are powered by a totally enclosed fan cooled AC induction two pole motor. Motor stator is made of low watt loss silicon steel laminations assembled under pressure and rigidly locked in the frame. The windings are of high-grade enameled copper wire offer excellent resistance and are varnish impregnated. Construction of motor frame and usage of quality materials result in high performance and low temperature rise thereby increasing the life cycle of the motor.
Features
:- High operating efficiency resulting in lower power consumption.
- Good suction lift characteristics
- Inbuilt with thermal overload protector
- Specially designed for wide voltage operation
- SS 304 impellers are used in specific pump models to increase the life of the pump
- Dynamically balanced rotating parts including rotor and impeller ensures minimum vibration and longer life
- Back pull-out design for easy servicing and repair
- Double shielded ball bearings, so no need of external lubrication
- Available in CI & Aluminium frame
Applications
:- Gardening and farm irrigation
- Water transfer and circulation
- Agriculture
- Industrial Application
WARRANTY :
- 1 Year Warranty
