70 Amp Air Plasma Cutter Welding Machine
12 A Input Current and 8 kVA Input Power
IGBT Welding Machine
20-70A Current Adjust Range
Brand : Generic (Imported)

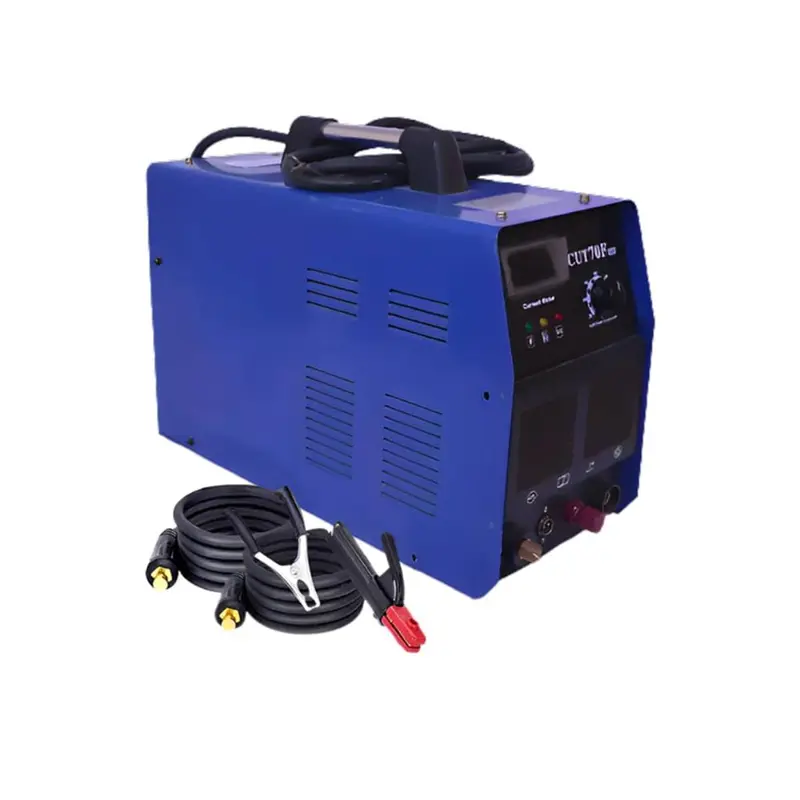

Classic CUT 70F Three Phase Welding Machine With IGBT Technology
SKU : ST-TCWM-134
MRP : ₹40000
₹35990
10% OFF!
-
1
+
Delivery By: Jul 19 - Jul 21
Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
Short Description
Country of origin: China
Specification
- Brand: Generic (Imported)
- Weight (Approx.) : 18 kg
- Output Current Range : 70 amp
- Technology : IGBT
- Model No. : CUT 70F
- Product Type : Welding Machine
- Brand : Generic
- Base Material : Carbon steel, Stainless steel, Low- alloy steel
- Input Power Supply : AC380-415V±10%, 3ph
- Frequency : 50 Hz
- Rated Input Current : 12 A
- Rated Input Power : 8 kVA
- No-Load Voltage : 290 V
- Current Adjust Range : 20-70 A
- Duty Cycle : 60 %
- Efficiency : 85 %
- Arc starting : HF
- Power Factor : 0.93
- Insulation Class : H
- Protection Grade : IP23
- Machine Cooling Mode : Air Cooled
- Cutting Thickness : (1-12) mm
- Cutting pressure :(3-5) kg/cm
- Switching Device : IGBT
- Overall Dimension : (550 x 280 x 545) mm
- Weight : 18 kg
Description
The Classic CUT 70F is a three-phase welding machine featuring advanced IGBT inverter technology for efficient and stable performance. Suitable for carbon steel, stainless steel, and low-alloy steel, it offers an output current range of 20–70A, a 60% duty cycle, and reliable cutting for industrial applications, ensuring high productivity and precision.
Features
:- Inverter technology
- Low-cost cutting with high stable and stiff arc, which brings you smooth cutting and a small cutting angle.
- Pilot Arc Start increases cutting efficiency.
- Conveniently and quickly cut metal plate.
- Built-in air filter and regulator.
- Equipped with over/under voltage, as well as insufficient compressor air pressure protection.
- Smooth cutting surface with high cutting speed.
- Widely used in cutting carbon steel, stainless steel, copper, cast iron and aluminium, etc.
- Strengthened and protection on the cutting torch connector largely enhances the operator's safety
- International Standard IEC 60974-1& IS0 9001:2015 Certified
Accessories
:- Welding Cable
- Earthing Clamp
- Operator's Manual
Applications
:Cutting steel and non-ferrous material
Gauging application
Bevel and hole cutting
Cutting of gratings
Stack cutting and shape cutting
Shipyard industries
Nuclear industries
Foundry industries
Pipe industries
Automotive and railroad components
Note :
- Do not use the welder for work other than welding.
- Do not touch the live part.
- Do not solder in places where skimming, cleaning and spraying are required.
- When using, please wear a protective cover or protective clothing.
