Brand : Generic (Imported)

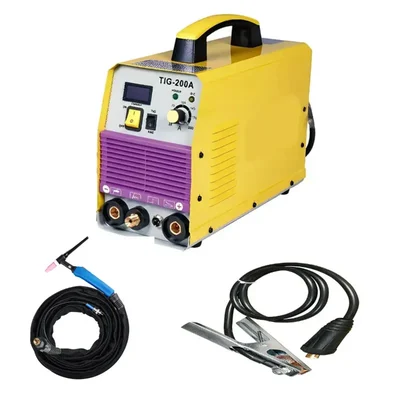

Premium Quality Single Phase Amps Mosfet TIG Welding Machine (TIG 200A)
SKU : ST-TWM-142
MRP : ₹23500
₹19500
17% OFF!
-
1
+
2270 people have viewed this recently
Get Extra ₹293 OFF on Prepaid Orders
Delivery By: Jun 20 - Jun 22
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Rated Input Current (A) MMA/TIG : 43/28
No- Load Voltage(V) : 56
Output Current Range : 7-200
Input Power Capacity (KVA) MMA/TIG : 6/6
Suitable Welding Rod(mm) : 2.5 & 3.15 continuously (No. 12 & 10)
Country of origin: China
Specification
  • Brand: Generic (Imported)
  • Weight (Approx.) : 9 kg
  • Output Current Range : 200 amp
  • Technology : MOSFET
  • Model No : TIG 200A
  • Phase : Single Phase
  • Input Voltage(V) : AC230V
  • Frequency(HZ) : 50/60
  • Rated Input Current (A) MMA/TIG : 43/28
  • No- Load Voltage(V) : 56
  • Output Current Range : 7-200
  • Input Power Capacity (KVA) MMA/TIG : 6/6
  • Suitable Welding Rod(mm) : 2.5 & 3.15 continuously (No. 12 & 10)
  • Duty Cycle(%) : 60
  • No-Load Loss (W) : 40
  • Arc lgnition : HF
  • Efficiency(%) : 80
  • Power Factor : 0.73
  • Insulation Grade : F
  • Housing Protection Grade : IP21
Description
A non-consumable tungsten electrode is used in the TIG (Tungsten Inert Gas) welding method to create the weld. To prevent ambient contamination of the weld region, an inert gas, usually argon, is used in the process. With a maximum output current of 300 amps, a 300 A TIG welding machine can be used for a variety of welding tasks, especially those involving thin materials and precision work.

Accessories

 :
  • 1 x Operator's Manual
  • 1 x Tig Torch
  • 1 x Earthing Clamp

Applications

 :
  • TIG welding is used for welding stainless steel and other non-ferrous metals, including copper, brass, and bronze.
  • It is also commonly used in the automotive industry for welding exhaust systems, fuel tanks, and other automotive components.
  • It is ideal for welding critical joints, where precision and quality are essential, such as in the manufacture of medical devices, instruments, and components.
  • TIG welding machines are used in the fabrication of precision parts for the electronics industry, such as in the manufacturing of electronic .
Note :
  • Do not use the welder for work other than welding.
  • Do not touch the live part.
  • Do not solder in places where skimming, cleaning and spraying are required.
  • When using, please wear a protective cover or protective clothing.
