Rated Input Current (A) : 14.4/9.6
No-load Voltage (V) : 60
Output Current Range (A) : 7-250
Input Power Capacity (KVA) : 9.5/6.5
Suitable Welding Rod (mm) 2.5 & 3.15 continuously (No. 12 & 10)
Brand : Generic (Imported)

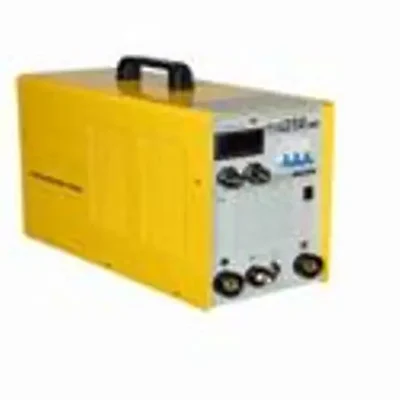

Classic TIG 250 Amps MOSFET Three Phase Welding Machine
SKU : ST-TTHW-150
MRP : ₹26450
₹21420
19% OFF!
-
1
+
Delivery By: Jul 21 - Jul 23
Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
Short Description
Country of origin: China
Specification
- Brand: Generic (Imported)
- Weight (Approx.) : 12 kg
- Output Current Range : 250 amp
- Technology : MOSFET
- Model No : TIG 250
- Product Type : Welding Machine
- Brand : Generic (Imported)
- Phase : Three Phase
- Input Voltage (V) : AC415V 15%
- Frequency (HZ) : 50
- Rated Input Current (A) : 14.4/9.6
- No-load Voltage (V) : 60
- Output Current Range (A) : 7-250
- Input Power Capacity (KVA) : 9.5/6.5
- Suitable Welding Rod (mm) : 2.5 & 3.15 continuously (No. 12 & 10)
- Arc Force (A) : 0-100
- Duty Cycle (%) : 60
- No-Load Loss (W) : 60
- Arc Ignition : HF
- Efficiency (%) : 85
- Power Factor : 0.93
- Insulation Grade : F
- Housing Protection Grade : IP21
- Dimension (cm) : 50.8 x 20.32 x 38.1
- Weight : 12 Kg (Approx)
Description
The Classic TIG 250 Amps MOSFET Three Phase Welding Machine delivers a 7–250A output range with stable arc performance and high efficiency. Designed for industrial use, it operates on AC 415V, features advanced MOSFET inverter technology, and offers reliable protection. Ideal for welding stainless steel, mild steel, and copper, it ensures consistent, high-quality welds with minimal spatter
Accessories
:- 1 x Welding Machine
- 1 x Operator's Manual
- 1 x Working Clamp
- 1 x Earthing Clamp
Applications
:- TIG welding is used for welding stainless steel and other non-ferrous metals, including copper, brass, and bronze.
- It is also commonly used in the automotive industry for welding exhaust systems, fuel tanks, and other automotive components.
- It is ideal for welding critical joints, where precision and quality are essential, such as in the manufacture of medical devices, instruments, and components.
- TIG welding machines are used in the fabrication of precision parts for the electronics industry, such as in the manufacturing of electronic .
Note :
- Do not use the welder for work other than welding.
- Do not touch the live part.
- Do not solder in places where skimming, cleaning and spraying are required.
- When using, please wear a protective cover or protective clothing.
