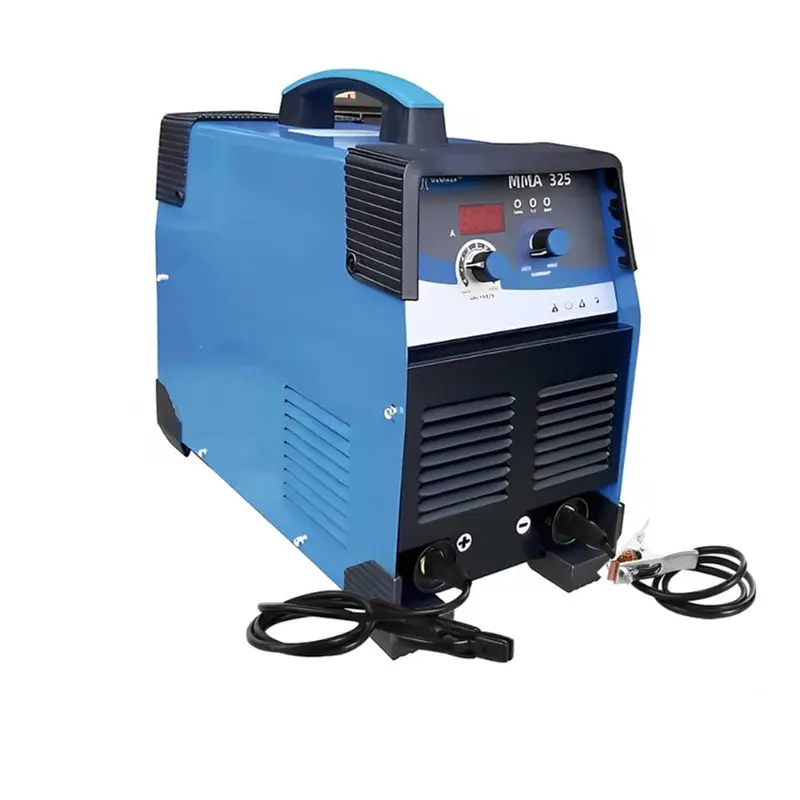

Heavy Duty TIG/MMA 325 Single Phase Welding Machine With IGBT Technology

• Model No. : TIG/MMA 325
• Product Type : Welding Machine
• Brand : Generic
• Base Material : All Types of Carbon Steel, Stainless Steel, Low-alloy steel
• Power Voltage : 1 Ph 230V AC±15 %
• Frequency : 50/60 Hz
• Rated Input Current : 14 A
• Rated Input Power Capacity : 9.5 kVA
• No-Load Voltage : 70±5
• Current Adjust Range : 20-325 A
• Duty Cycle : 60%
• No-Load Power : 40 W
• Pilot arc model : HF
• Efficiency : 85 %
• Power Factor : 0.93
• Insulation Class : H
• Shell Protection Class : IP23
• Tungsten Rod Diameter : 1.6-3 mm

• Switching Device : IGBT
• Overall Dimension : (480 x 205 x 370) mm
• Machine Cooling Mode : Air Cooled
• Weight : 20 kg

Features

• DC TIG and ARC (MMA) dual-purpose welding mechanism
• Advance Inverter Technology
• Auto protection of over-voltage and over-current
• Outstanding welding Features in TIG & MMA with any type of electrodes, cellulosic included
• Capable to work continuously
• Minimal Spatter reduces the cleaning time of parts and fixturing and improves arc feature and functioning
• Supreme ignition feature, even with long TIG torches
• High efficiency, high frequency, low electricity consumption
• Light and handy for easy portability
• Cut down overall heat input for superior weld feature, without burn-through or warping
• Fixed programmed post-flow timer save tungsten tip, workpiece and torch
• International Standard IEC 60974-1& ISO 9001:2015 Certified

Accessories

• Welding Cable
• Earthing Clamp
• Operator's Manual

Applications
