Brand: Generic ( Made in India )

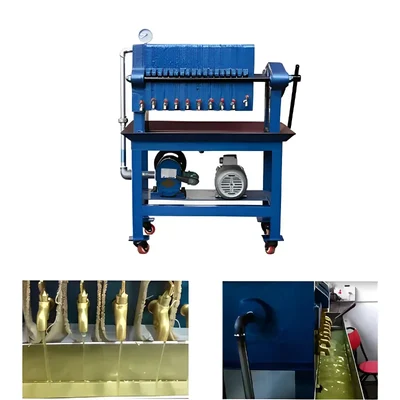

Commercial Oil Filter Press/Expeller Machine 1 HP, 50-60 Kg/hr
SKU: DK-KY-2040
₹119250 (Including GST)
MRP : ₹142000
Get extra ₹1,789 Discount (On Checkout)
Delivery By: May 6 - May 8
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Commercial Oil Filter Press/Expeller Machine
Production Capacity : 50-60 Kg/hr
1 HP Power
Country of origin: India
Description

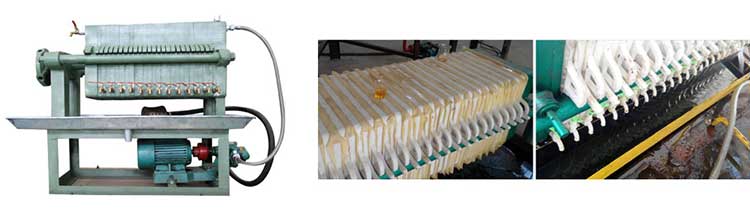

The 1 HP Commercial Oil Filter Machine is used for carrying out the oil filtration process upon following a series of steps. This machine basically removes the impurities and sediments present in the oil, ensuring the production of high quality oil suitable for consumption. This machine operates through a series of steps, including pre-treatment, filtration, collection of impurities and obtaining purified oil. This machine has a working pressure of 5 Bar and it consists of 12 pieces of filter plates and has a filtration capacity of 50-60 kg per hour. The machine is designed to withstand heavy duty usage which makes it perfectly suitable for commercial usage.
Features
:- Compact Structure : The design of the machine is compact, making it suitable for various operational spaces without requiring excessive room.
- High Filtration Speed : This machine is engineered to provide a high filtration speed, ensuring that the filtering process is efficient and time-effective.
- Quality Filtration : The filtered oil produced by this machine is of high quality and no sediment left in the final product.
- Simple Operation : The operation of the oil filter machine is straightforward, allowing users to easily manage the filtering process without extensive training.
Specification
:- Brand: Generic ( Made in India )
- Material : Mild Steel
- Motor Power : 1 HP
- Phase : Single
- Automatic Grade: Automatic
- Working Pressure : 0.3-0.4 M Pa
- No. of Filter Plates : 12 pcs
- Production Capacity : 50-60 Kg/hr
- Dimension of Filter Plate : 250*250 mm
- Product Dimension : 45 x 24 x 45 cm
- Weight : 350 Kg (Approx.)
Note : Suitable for extracting oil from edible seeds only.
Usage
:1. Preparation of the Machine :
- Inspect the Equipment : Before starting, check all components of the oil filter press for any visible damage or wear. Ensure that the plates are clean and free from any residual materials.
- Set Up the Power Supply : Connect the machine to an appropriate power source, ensuring that it matches the specifications required for a 1 HP motor.
2. Assembly :

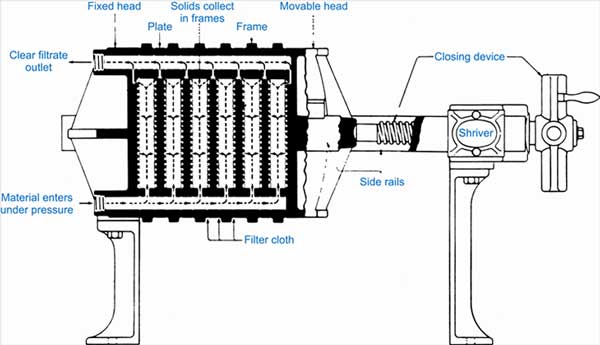

- Install Filter Cloths : Place tailored filter cloths over each plate in the press. Secure them tightly using cast iron nuts at the center of each plate to prevent leaks during operation.
- Position Plates : Stack the plates together, ensuring they are aligned properly to form chambers for oil filtration.
3. Feeding Oil into the Machine :
- Prepare Raw Materials : Ensure that the oil-bearing seeds or nuts (such as soybean, groundnuts, or sunflower seeds) are cleaned and pre-processed if necessary (e.g., mechanically expressed).
- Check the Feeding Pump : Check the feeding pump whether it's properly able to feed oil through the filter cloths or not.
4. Operation :
- Start the Motor : Turn on the motor of the filter press machine. This will activate the hydraulic system that operates the pressing mechanism.
- Feed Oil Continuously : Begin feeding oil into the machine gradually while monitoring pressure levels. The liquid will flow through the filter cloths, separating impurities and suspended solids from clean oil.
5. Monitoring Filtration Process :
- Check Pressure Gauges : Regularly monitor pressure gauges during operation to ensure they remain within safe limits.
- Observe Output Quality : Collect filtered oil from petcocks provided at the bottom of each plate chamber and check its clarity and quality.
- Stop Feeding Oil : Once you have collected enough filtered oil or when you notice a drop in output quality, stop feeding more oil into the machine.
- Clean Up Residual Cake : After stopping, open up the plates carefully to remove any residual cake (the solid material left after filtration). This can be done manually or with assistance from a plate shifter if available.
Maintenance :
- Filter Plates and Cloths : After each use, clean the filter plates and cloths to remove any residual oil or sludge. This prevents clogging and ensures effective filtration in subsequent operations.
- Exterior Cleaning : Keep the exterior of the machine clean to prevent dust accumulation that could interfere with mechanical parts.
- Lubrication : Ensure that all moving parts are well-lubricated according to the manufacturer’s specifications. Use appropriate lubricants to minimize wear and tear on components such as bearings, gears, and hydraulic systems.
- Regular Inspection : Regularly inspect critical components such as hydraulic cylinders, pumps, seals, and hoses for signs of wear or damage. Replace any worn or damaged parts immediately to avoid operational failures.
Applications
:- Edible Oil Production : The primary application of a 1 HP oil filter press is in the production of edible oils from seeds such as sunflower, soybean, and mustard. It effectively removes impurities, sediments, and solid particles from crude oil, ensuring that the final product meets safety and quality standards for consumption.
- Cooking Oil Filtration : In households or small food processing units, this machine is used to filter cooking oils after extraction. It helps in clarifying the oil by removing unwanted particles, thus enhancing its quality and extending its shelf life.
- Small-Scale Oil Mills : Small-scale oil mills often utilize a 1 HP oil filter press for processing smaller batches of oil. This allows them to maintain high-quality standards while managing limited production capacities.
Toolsvilla deals with various types of Food Processing Machinery. Wide varieties of Oil Filter Press Machines are used to separate all kinds of contamination such as metal impurities, carbon residues, colloids, suspended and make the output oil clean and pure/natural.
