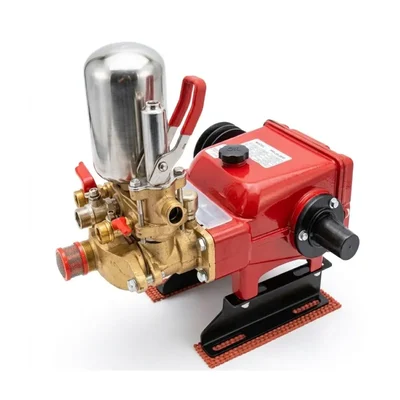

Peter (CP-S75) HTP 75 Power Sprayer Pump with 4-Inch Pulley for Commercial Agriculture Crop Spraying and Washing

Brand: Generic (Imported)

Peter (CP-S75) HTP 75 Power Sprayer Pump with 4-Inch Pulley for Commercial Agriculture Crop Spraying and Washing

Name: Peter (CP-S75) HTP 75 Power Sprayer Pump with 4-Inch Pulley for Commercial Agriculture Crop Spraying and Washing
Brand: Generic (Imported)
SKU: TI-PC-77707
Price: 7650 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: TI-PC-77707

MRP : ₹11999 ₹7650

36% OFF!

Get Extra ₹115 OFF on Prepaid Orders

Estimated Delivery By: Jul 22 - Jul 24

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹7650 (Including GST)

MRP : ₹11999

36% OFF!

Get Extra ₹115 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

Peter (CP-S75) HTP 75 Power Sprayer Pump

With 4-Inch Pulley

For Commercial Agriculture Crop Spraying and Washing

Country of origin: China

Brand: Generic (Imported)
Weight (Approx.) : 14 kg

Model : CP-S75
Piston Setup (Qty x Dia x Stroke) : 3 x 30 x 20 mm
Operational Speed Range : 800 - 1000 RPM
Suction Capacity : 45 - 55 LPM (Liters Per Minute)
Working Pressure Scale : 15 - 55 kgf/cm²
Drive Pulley Size : 4 Inch
Physical Dimensions : 39 x 30 x 34 cm

Optimize your agricultural spraying and industrial cleaning operations with the heavy-duty Peter CP-S75 HTP 75 Power Sprayer Pump. Driven by a high-efficiency 4-inch pulley system, this commercial-grade horizontal triplex piston pump is built to withstand rigorous daily field use. It features a robust 3 x 30 x 20 piston configuration that operates smoothly within an 800–1000 RPM range, delivering an impressive suction capacity of 45–55 liters per minute (LPM). With an adjustable working pressure spanning 15–55 kgf/cm², it effortlessly provides the long-distance vertical throw required for tall orchard trees as well as the raw force needed for stubborn mud removal. Encased in a highly compact 39 x 30 x 34 cm frame, this power sprayer easily integrates into tractor-mounted rigs, portable trolleys, or stationary washing stations.

Features

Pulse Free Flow Efficiency: The three precision-engineered 30 mm diameter pistons with a 20 mm stroke ensure a smooth, uniform liquid output.
Balanced Mechanical RPM: Designed to operate optimally at 800–1000 RPM, preventing overheating and significantly reducing component wear.
Chemical Resistant Valve Head: Built with rugged components capable of handling harsh liquid fertilizers, pesticides, and clean water.
Heavy Duty Torque Delivery: The integrated 4-inch pulley provides even belt tension, preventing slippage under maximum pressure loads.
Anti Vibration Rigid Frame: Constructed from high-strength cast alloy to minimize operational vibration and maintain system alignment.

Applications

Orchard & Tall Canopy Spraying: Generates the high vertical pressure needed to reach the tops of tall fruit trees, vineyards, and dense rubber plantations.
Commercial Vehicle Wash Bays: Blasts away thick, dried-on mud and grit from commercial trucks, tractors, and heavy construction machinery.
Broad-Acre Crop Pest Control: Feeds multi-nozzle field boom sprayers effortlessly due to its large-volume 45–55 LPM continuous flow output.
Livestock Facility Disinfection: Facilitates rapid, deep cleaning and chemical sanitization across large dairy barns, poultry farms, and stables.
Industrial Pipe & Tank Rinsing: Serves as a reliable, portable high-pressure utility pump for factory floor wash-downs and storage tank maintenance.
