Brand: Made in India

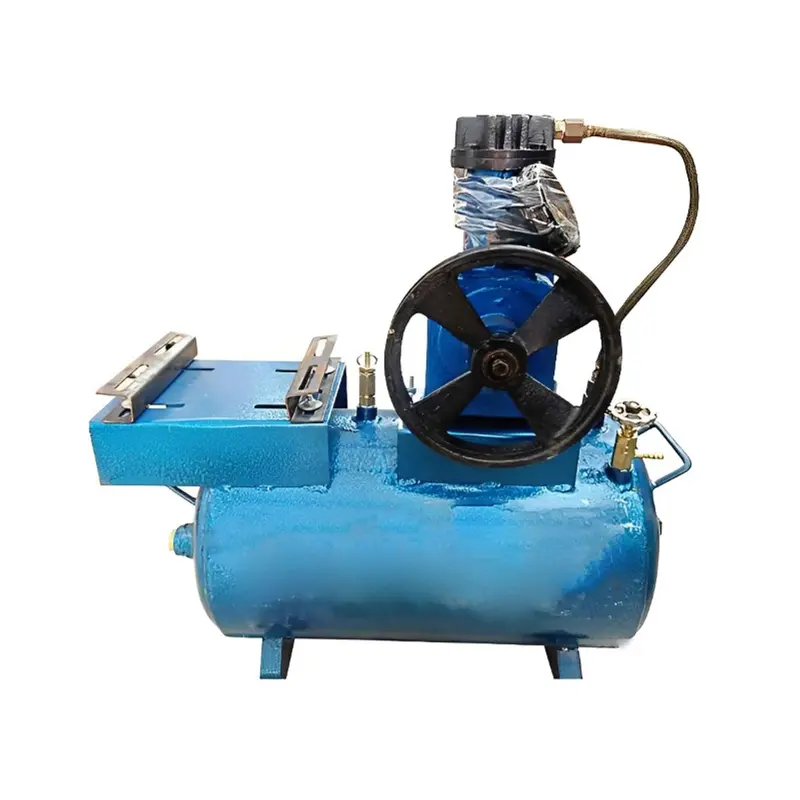

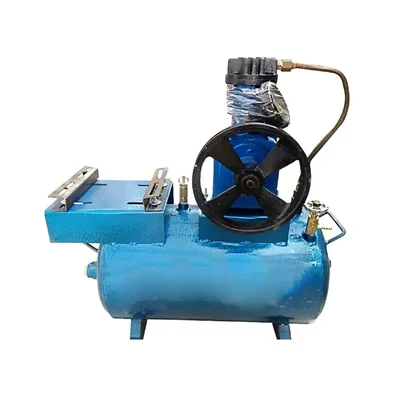

45 Litres Air Compressor With Head Without Motor, 102 psi max. Pressure and 3.5 CFM
SKU: SAC-ACT-460
Regular Price : ₹13187
Offer Price : ₹9990 (Including GST)
Get extra ₹300 Discount (On Checkout)
Qty:
Easy Returns
Quality Assurance
Trusted Delivery
After Sales Assistance
Short Description
45 Liter Single Cylinder - without Motor
100 PSI Max Pressure
55 mm Bore Size
Required 0.5 hp motor & 4-inch V-Belt & Pulley
Description
45 Litres Air Compressor With Head Without Motor, 102 psi max. Pressure and 3.5 CFM
Features :
- Air Compressor : Cast Iron body made of graded cast pig raw material under necessary grain grade.
- Air filter : Meshed Air Filter to intake clean air.
- Valve : Valves are of special steel made, Hardened ground & tapped for efficient delivery& suction of air.
- Cylinder : Deeply Finned for quicker cooling & better heat dissipation with high capacíty for maximum displacement per stroke,
- Piston : Precision, Balanced for smooth vibration & free operation.
- Ring : Oil control compressor ring with high graded quality for assurance of maximum delivery of clean air.
- Connecting rod : Made of Cast iron under precision measurement.
- Crank shaft : Made of steel equipped with ball-bearing for smooth & break free running.
- Fly wheel : Designed as fan type fly wheglto deliver the powerful stream of cooling air to cool the cylinder & body.
- Oil level : Easy way to check the oil level of the machine.
Specification :
- Model No. : GR-1
- Product Type : Air Compressor
- Brand : Made in India
- No of Cylinder : 1
- Metal : Cast Iron
- Auto Cut : Yes
- Motor Type : Single Phase AC
- Manometer : Yes
- Tank : 45 lts
- CFM : 3.5
- Max Pressure : 7 bar (102 psi)
- Working Pressure : 55 PSI (3.7 Bar)
- RPM : 700
- Air receiver Size : 10x22
- Bore(MM) : 55
- Required Motor Capacity : 0.5 HP Motor & 4-inch V-Belt & Pulley
- Stroke(MM) : 50
- Weight : 30 Kg (Approx)
