Brand : Generic (Imported)
Automatic Continuous 3 Kg MS Vertical Band Sealer
SKU : SI-AC-18486
MRP : ₹15999
₹11999
25% OFF!
-
1
+
11 people have bought this recently
Get Extra ₹180 OFF on Prepaid Orders
Delivery By: Jun 19 - Jun 21
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Continuous MS Vertical Band Sealer
Sealing Speed 0-12 meter per min
Sealing Width 6-12 mm
Country of origin: China
Specification
  • Brand: Generic (Imported)
  • Weight (Approx.) : 19 kg
  • Power : 500 W
  • Voltage : 220V AC
  • Frequency : 50 Hz
  • Sealing Speed : 0-12 meter per min
  • Sealing Width : 6-12 mm
  • Feeding Movement : Right to Left
  • Temperature : 0-300°C
  • Material : Mild Steel
  • Control Panel : Analog
  • Package Material : Laminated Pouches
  • Max. Conveyor Loading : 3 kg
  • Dimension (L x B x H) : 850 x 420 x 360 mm
  • Weight : 19 kg (Approx.)

NOTE :
  • Conveyor belt color may vary
  • Suitable for High Graded Pouches, just like laminated Pouches.
Description

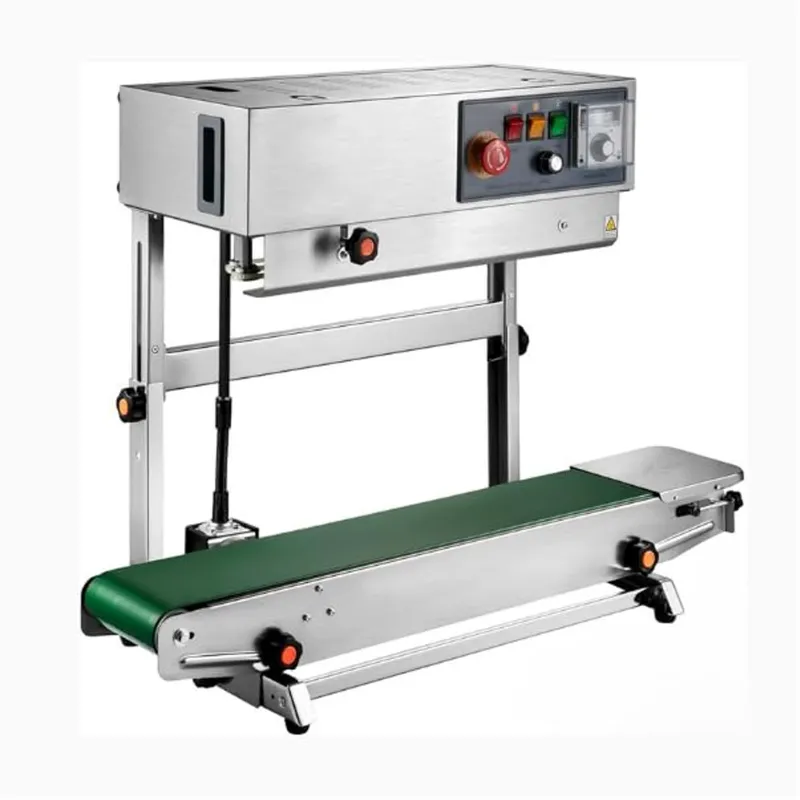

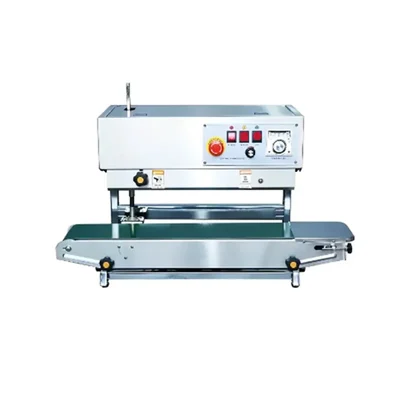

This vertical band sealer is a machine that uses heat and pressure to seal high graded pouches continuously. This machine has a conveyor system to seal the pouches through the machine to apply consistent heat and pressure, forming airlock packaging. This machine is used for sealing packages, seed processing units, pharmaceuticals, chemical industries, dairy, cosmetic, and chemical industries, and it is very simple to use. It has a maximum transport weight of 3 kg, which saves labor effort. This machine may increase packaging despite excessive production.

Features

 :
  • Continuous Sealing : Provides continuous operation for high-speed sealing of bags.
  • Vertical Design : Ideal for sealing upright bags or pouches, such as those used for liquids, powders, and granular products.
  • Durable Construction : Made of high-quality materials for long-lasting performance.
  • Efficient Sealing : Ensures strong, secure seals that maintain product integrity.
  • Adjustable Height : Height can be adjusted according to our need.

Applications

 :
  • Food Processing Industry : In the food processing sector, the vertical band sealer is widely used for packaging items such as snacks, grains, tea, coffee, and other dry goods.
  • Pharmaceutical Industry : The pharmaceutical industry utilizes this sealer for packaging medicines, supplements, and other health-related products.
  • Retail Packaging : Retail businesses often use continuous vertical band sealers for packaging consumer goods like pet food or cleaning supplies.
  • Agriculture Sector : Agricultural products such as seeds and fertilizers can be effectively packaged using this machine.

Usage

 :
  • Preparation Before Use : Place the band sealer on a stable, flat surface. Ensure it is assembled correctly and securely.
  • Power Connection : Connect the band sealer to an appropriate power source. Locate the power switch and turn it on. You should see indicator lights showing that the machine is powered up.
  • Adjusting Settings : Set the settings according to your need.
  • Loading Bags : Ensure that bags are clean, dry, and free from any foreign materials at the sealing edge.
  • Sealing Process : Once everything is set up and bags are positioned correctly, press the start button or switch to begin operation.
  • Post-Sealing Checks : After sealing, check each bag for proper seals. Once sealed, collect bags from the output side of the conveyor belt.

Maintenance :
  • Clean Regularly : After use, clean any residue from around the sealing area and conveyor belt to prevent contamination.
  • Turn Off Power : Always turn off and unplug the machine after use to ensure safety.
