Brand: Generic (Imported)

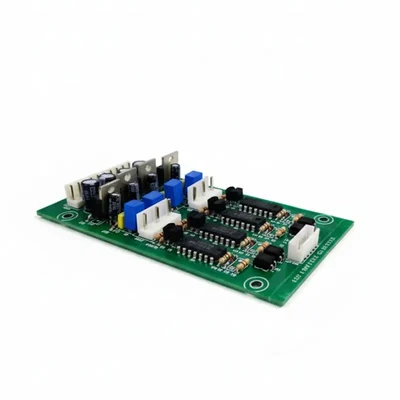

NG Weld 400X Control Card 3ph, Three Phase Welding Machine Control PCB
SKU: TI-NW-54367
Delivery By: Jan 10 - Jan 12
MRP : ₹2845 ₹2189
23% OFF!
Delivery By: Jan 10 - Jan 12 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹2189 (Including GST)
MRP : ₹2845
23% OFF!
Get Extra ₹33 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Three-Phase (3Ph) Systems
400X Series MIG/MMA Welding Machines
Country of origin: China
Specifications
- Brand: Generic (Imported)
- Weight (Approx.) : 100 gm
- Model Number : 400X (3-Phase)
- Compatibility : 400X Series MIG/MMA Welding Machines
- Phase Support : Three-Phase (3Ph) Systems
- Control Logic : Precision PWM Current & Voltage Regulation
- PCB Grade : Industrial FR4 with High-Thermal Resistance
- Connectivity : Multi-Pin Easy-Plug Connectors
Description
The 400X Control Card 3 Phase is a premium electronic PCB engineered for three-phase heavy-duty MIG and MMA welding machines. It provides precision current regulation and voltage control for a stable arc and superior weld quality. Built with industrial-grade components, it features integrated protection logic to ensure long-term reliability and peak performance in demanding workshop environments.
Features
:- Advanced Arc Stability : Delivers smooth ignition and consistent arc performance for high-quality welds.
- Heavy-Duty Build : Specifically designed to handle the rigors of industrial 3-phase power environments.
- Smart Protection : Integrated circuitry guards against voltage surges and thermal overloads.
- Seamless Integration : Features multiple standardized connectors for quick installation and maintenance.
- Precision Control : Fine-tuned current management for both MIG and MMA welding modes.
Applications
:- Industrial MIG Welders : Main control unit for wire feed and voltage management.
- Heavy-Duty MMA Machines : Reliable current regulation for stick welding.
- Workshop Upgrades : Replacing old or faulty 400X series control boards.
- Automation Systems : Suitable for integrated 3-phase industrial welding setups.
Usage
:Usage Guidance :
- Power Down : Completely disconnect the 3-phase power supply before opening the machine.
- Mapping : Take a photo of existing wire connections on the old card before removal.
- Installation : Align the card on the mounting standoffs and secure it firmly.
- Wiring : Reconnect all multi-pin plugs ensuring they are fully seated and locked.
- Calibration : Perform a low-current test run to verify arc stability before full-load operation.
Maintenance Guidance :
- Cleanliness : Use dry air to remove metallic dust buildup, which can cause short circuits on the PCB.
- Terminal Check : Inspect connector pins periodically for signs of carbon soot or loose seating.
- Thermal Management : Ensure the machine’s internal cooling fans are functioning to prevent card overheating.
