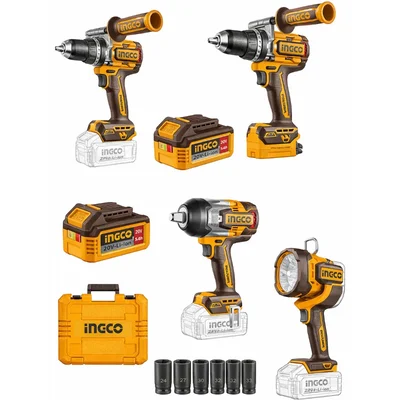

INGCO COSLI250882 20V Cordless 3Pcs Combo Kit Brushless Impact Drill, Impact Wrench, Work Lamp, Batteries and Accessories

1. Brushless Cordless Impact Drill (CIDLI2016681) Specifications:

• Voltage: 20V

• Motor type: Brushless

• No-load speed: 0–550 / 0–2100 RPM

• Maximum impact rate: 31,500 BPM

• Maximum torque: 166 Nm

• Chuck type: Metal

• Chuck capacity: 13 mm

• Torque settings: 23+1+1

• Gear system: Mechanical 2-speed

• Spindle lock: Yes

• Product Weight: 2.2 kg Approx

2. Cordless Impact Wrench (CIWLI201051) Specifications:

• Voltage: 20V

• Motor type: Brushless

• No-load speed: 0–1200 / 0–1600 / 0–2100 RPM

• Impact rate: 0–1800 / 0–2000 / 0–2200 BPM

• Fastening torque: 1050 Nm

• Nut-busting torque: 1200 Nm

• Drive type: 3/4 inch square drive

• Product Weight: 3 kg Approx

3. Cordless Work Lamp (CWLI2088) Specifications:

• Voltage: 20V

• LED power: 22.5 W

• Brightness modes: High 2000 lumens / Medium 1400 lumens / Low 800 lumens

• Lamp head swivel: 130°

• Irradiation distance: Ultra-long

• Grip: Ergonomic with soft grip

• Hanger: Metal

• Product Weight: 0.5 kg Approx

4. Battery and Charger Specifications:

• Battery type: Lithium-ion

• Capacity: 5.0 Ah (2 pcs included)

• Charger input voltage: 220–240V~ 50/60Hz

• Charger output: Compatible with 20V battery packs

5. Included Accessories Specifications:

• 5 deep sockets: 24, 27, 30, 32, 33 mm

• 3 wood flat drill bits: 16, 19, 22 mm

• 3 masonry drill bits: 5, 6, 8 mm

• 3 HSS drill bits: 4, 5, 6 mm

• 2 impact screwdriver bits: 65 mm (PH2+PH2, PH2+SL6)

• 1 auxiliary handle

Features

1. Brushless Cordless Impact Drill (CIDLI2016681) Features:

• Brushless motor for higher efficiency and longer life

• No-load speed: 0-550 / 0-2100 RPM

• Maximum impact rate: 31,500 BPM

• Maximum torque: 166 Nm

• Metal chuck with 13 mm capacity

• 23+1+1 torque settings for precise fastening

• Mechanical 2-speed gear for versatile drilling

• Spindle lock function for easy bit changes

2. Cordless Impact Wrench (CIWLI201051) Features:

• Brushless motor for durability and performance

• No-load speed: 0-1200 / 0-1600 / 0-2100 RPM

• Impact rate: 0-1800 / 0-2000 / 0-2200 BPM

• Fastening torque: 1050 Nm

• Nut-busting torque: 1200 Nm

• 3/4 inch square drive for heavy-duty fastening

• Multiple speed modes for controlled operation

3. Cordless Work Lamp (CWLI2088) Features:

• LED power dissipation: 22.5 W

• High: 2000 lumens, Medium: 1400 lumens, Low: 800 lumens

• 3 brightness modes for flexible lighting

• Ultra-long irradiation distance

• Swivel lamp head adjustable up to 130°

• Ergonomic soft-grip handle for comfortable use

Accessories

1. Brushless Cordless Impact Drill (CIDLI2016681) Accessories:

• 3 Wood flat drill bits: 16 mm, 19 mm, 22 mm

• 3 HSS drill bits: 4 mm, 5 mm, 6 mm

• 2 Impact screwdriver bits (65 mm): PH2+PH2, PH2+SL6

• 1 Auxiliary handle

• 1 Battery pack (5.0Ah)

• 1 Charger (shared with other tools)

2. Cordless Impact Wrench (CIWLI201051) Accessories:

• 5 Deep sockets: 24 mm, 27 mm, 30 mm, 32 mm, 33 mm

• 1 Battery pack (5.0Ah)

• 1 Charger (shared with other tools)

3. Cordless Work Lamp (CWLI2088) Accessories:

• 1 Battery pack (5.0Ah)

• 1 Charger (shared with other tools)

• Built-in metal hanger for mounting

Applications

1. Brushless Cordless Impact Drill (CIDLI2016681) Applications:

• Drilling in wood, metal, and plastic surfaces

• Fastening screws and bolts with precise torque control

• Home improvement and DIY projects

• Light to medium construction tasks

• Furniture assembly and cabinetry work

2. Cordless Impact Wrench (CIWLI201051) Applications:

• Automotive repairs (tyre changing, engine assembly/disassembly)

• Heavy-duty fastening tasks in construction or metalwork

• Bolting and unbolting nuts and bolts efficiently

• Mechanical maintenance and industrial assembly work

• Tasks requiring high torque and nut-busting capabilities

3. Cordless Work Lamp (CWLI2088) Applications:

• Illumination for workshops, garages, and construction sites

• Portable lighting for DIY projects or outdoor work

• Focused light for drilling, fastening, or inspection tasks

• Emergency lighting during power outages

Usage

1. Brushless Cordless Impact Drill (CIDLI2016681) Usage:

• Fully charge the 20V battery before first use.

• Attach the desired drill bit or screwdriver bit to the metal chuck.

• Select the appropriate torque setting (23+1+1) and speed (low/high) for your task.

• Hold the drill firmly with both hands, using the auxiliary handle if needed.

• Press the trigger to start drilling or fastening.

• Use the spindle lock function to change bits safely.

• After use, remove the battery and store the drill in the carrying case.

2. Cordless Impact Wrench (CIWLI201051) Usage:

• Insert a fully charged 20V battery.
• Attach the correct deep socket to the 3/4” square drive.
• Select the required speed mode (0–1200 / 0–1600 / 0–2100 RPM) for your application.
• Position the socket on the nut or bolt securely.
• Press the trigger to tighten or loosen fasteners.
• For high-torque nuts, use nut-busting torque carefully.
• Remove the battery after use and store the wrench in the carrying case.

3. Cordless Work Lamp (CWLI2088) Usage:

• Insert a fully charged 20V battery.

• Press the power button to turn the lamp on.

• Select the brightness mode: High (2000 lumens), Medium (1400 lumens), or Low (800 lumens).

• Adjust the lamp head angle up to 130° for optimal illumination.

• Use the metal hanger to mount the lamp if needed.

• After use, remove the battery and store the lamp in the carrying case.
