Brand: CG Power and Industrial Solutions Ltd.

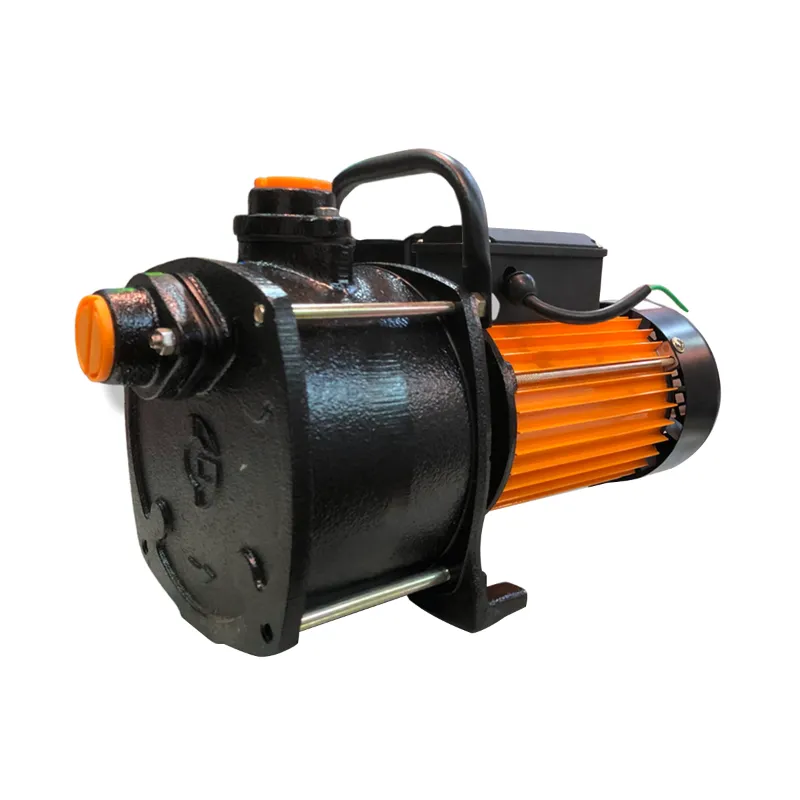

CG Power 1 HP Single Phase Shallow Well Jet Pump, 124ft Max. Head, 25x25 mm (CGDSW100C) - 1 Year Warranty
SKU: IN-CR-2021091
6 people have bought this recently
Delivery By: Jan 10 - Jan 12
MRP : ₹12000 ₹9590
20% OFF!
6 people have bought this recently Delivery By: Jan 10 - Jan 12 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹9590 (Including GST)
MRP : ₹12000
20% OFF!
Get Extra ₹144 OFF on Prepaid Orders
Short Description
CG Power (CGDSW100C) 1 Hp Single Phase Shallow Well Pump
38 Meter Max. Head, 2000 LPH Max. Discharge
1 Year Warranty
Country of origin: India
Specifications
- Brand: CG Power and Industrial Solutions Ltd.
- Power : 1 hp
- Weight (Approx.) : 10 kg
- Flow Rate : 33 lpm
- Head : 38 meter
- Model No. : CGDSW100C
- Product Type : Shallow Well Pump
- Brand : CG Power and Industrial Solutions Ltd.
- Motor Power : 0.75 kW
- Power : 220 V AC Supply
- Electricity Connection : Single Phase
- Pipe Size (Suction x Delivery) : 25x25 mm
- Head range : 20 to 38 Meter (65 to 124 Feet)
- Discharge Range : 2000 to 700 LPH (33 to 11 LPM)
- Frame : 71
- Speed : 2850
Construction Details :
- Motor Body : Aluminium Extrusion
- Casing End Plate : Cast Iron
- Pump Drum : SS/Cast Iron
- Adaptor : Cast Iron
- Impeller : Noryl
- Shaft : SS 410
- Winding : Copper
- Stamping : M47
Description
A shallow well jet pump is a type of pump designed to draw water from relatively shallow depths, typically up to 25 feet. It uses a jet assembly (nozzle and venturi) to create suction, making it ideal for residential water supply, irrigation, and boosting pressure from shallow sources.
Features
:- CED Coated Pump Components
- Powder Coated Motor Body
- Totally Enclosed Fan Cooled Motor
- Designed for High Efficiency water lifting
- High quality mechanical seal for long life
- Fitted Non Return valve (NRV)
- In-Built Thermal Overload Protection
- TEFC Motor with Class-F Insulation
- Provided with handle
Applications
:- Clear water supply to overhead tanks of Building, Apartments, Gardening, Hotels, Small Farms, Hospital etc.
Warranty :
- 1 Year Warranty.
