Brand: Crompton

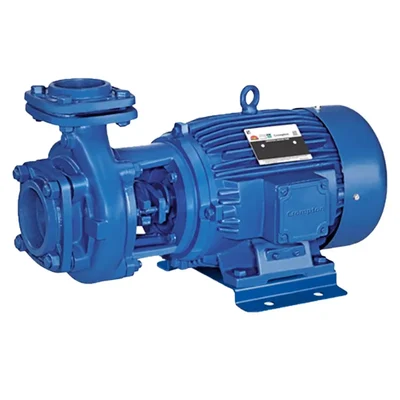

Crompton 3 HP Centrifugal Monoblock Pump, 50 Feet max Head & 1050 LPM 80 x 80 mm - 1 Year Warranty
SKU: DC-CM-20220435
4 people have bought this recently
Delivery By: Dec 19 - Dec 21




MRP : ₹24859 ₹22750
8% OFF!

4 people have bought this recently
Delivery By: Dec 19 - Dec 21
Easy Return
& Refund
& Refund

Quality
Assurance
Assurance

Trusted
Delivery
Delivery

After Sales
Assistance
Assistance

Buyer
Protection
Protection
₹22750 (Including GST)
MRP : ₹24859
8% OFF!
Get Extra ₹341 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Crompton 3 Hp Single Phase Centrifugal Monoblock Pump
50ft Max. Head, 1050 LPM Max. Discharge
80 x 80 mm Pipe Size
1 Year Warranty
Country of origin: India
Specifications
- Brand: Crompton
- Power : 3 hp
- Weight (Approx.) : 40 kg
- Flow Rate : 1050 lpm
- Head : 15 meter
- Model No. : MBQ32(1PH)-15
- Product Type : Centrifugal Monoblock Pump
- Brand : Crompton
- Power Source : Electric, AC Supply
- Motor Power : 2.2 kW
- Electricity Connection : Single Phase
- Speed : 3000 RPM
- No. of Stage : 1
- Max Head Range : 20 to 50 Feet (6 - 15 meters)
- Pipe Size (Suction X Delivery) : 80 x 80 mm
- Discharge Rate : 1050-450 LPM
Materials of construction :
- Material : Cast Iron
- Impeller Material : Brass
Description
A monoblock pump is a type of pump that is characterized by its compact and self-contained design, where the pump, motor, and drive shaft are combined into a single unit. Centrifugal monoblock pumps are commonly used in various applications such as water supply, irrigation. These pumps operate based on the principle of centrifugal force, where the rotation of the impeller creates a centrifugal force that pushes the liquid towards the outer edges of the pump casing, resulting in increased pressure and flow rate.
Features
:- Uni-casing construction
- Flat performance curves at high delivery rates, preventing motor overload even when used for lengthy periods of time
- Good Suction capacities at both low and high delivery rates
- Horizontal mounting with central discharge at the top is possible
- There are fewer parts and the construction is more space-efficient
Applications
:- Bungalows, buildings, flats, hotels, garages, laundries and industries.
- Car washing.
- Booster application.
- Small farms.
- Lawn sprinklers.
- Ornamental fountains.
- Water circulation in solar heater systems.
- Auxiliary equipment for machinery.
Warranty :
- 1 Year Warranty.
