CG Power Mini Sergeant-II 0.5 Hp Single Phase Self Priming Monoblock Pump, 22m Max. Head (CGDMM05MS) - 1 Year Warranty
SKU : IN-CR-2021083
MRP : ₹4825
₹3399
30% OFF!
-
1
+
3181 people have viewed this recently
Get Extra ₹51 OFF on Prepaid Orders
Delivery By: Aug 5 - Aug 7
Add to Cart
Buy Now
Easy Return & Refund
Quality Assurance
Trusted Delivery
After Sales Assistance
Buyer Protection
Short Description

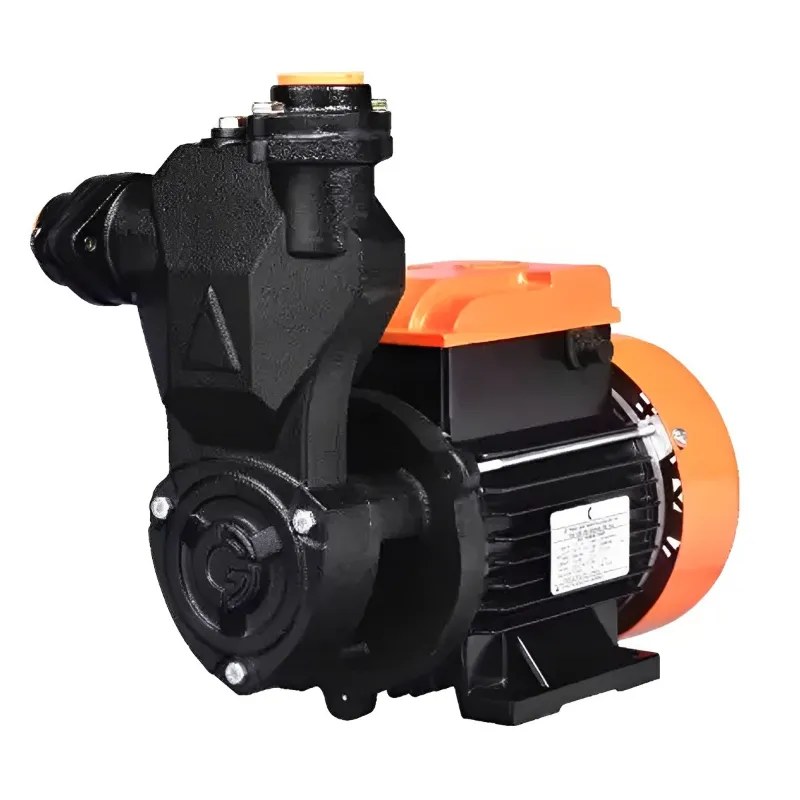

CG Power 0.5 Hp Self Priming Pump Mini Sergeant II (CGDMM05MS)
22m Max. Head, 2000 LPH Max. Discharge
1 Year Warranty
Country of origin: India
Specification
Brand: CG Power and Industrial Solutions Ltd.
Power : 0.5 hp
Weight (Approx.) : 6 kg
Flow Rate : 33 lpm
Head : 22 meter
Model No. : Mini Sergeant II (CGDMM05MS)
Product Type : Self Priming Monoblock Pump
Brand : CG Power and Industrial Solutions Ltd.
Motor Power : 0.37 kW
Voltage : 220V, 50Hz
Electricity Connection : Single Phase
Pipe Size (Suction X Delivery) : 25x25 mm
Head Range : 6-22 Meters
Discharge Range : 2000-500 LPH
Winding Material : Copper
Speed : 2850 RPM
Material Of Construction :
Motor Body : Aluminium Extrusion/Pressure Die Casting/Cast Iron
Pump Casing : Cast Iron
Adaptor : Cast Iron
Impeller : Forged Brass
Shaft : SS 410
Stamping : CRNO
Mechanical Seal : Carbon vs Ceramic
Description
A self-priming monoblock pump integrates the motor and pump into a single compact unit, eliminating the need for complex alignments. It's designed to automatically re-prime itself by drawing air from the suction line and mixing it with water, making it ideal for applications where the water level may fluctuate or the pump might run dry temporarily, such as domestic water supply and small-scale irrigation .
Features
:
CED Coated Pump Components.
Powder Coated Motor Body.
Fitted with Thermal Overload Protector (1Ph Only).
High-quality mechanical seal for long life.
Applications
:
Water supply to overhead tanks of Bungalows, Residential Buildings, Flats, Hotels, Hospitals, Lawns Sprinklers, Nursing homes, Clubs, etc.
