Brand: CROSSBEE

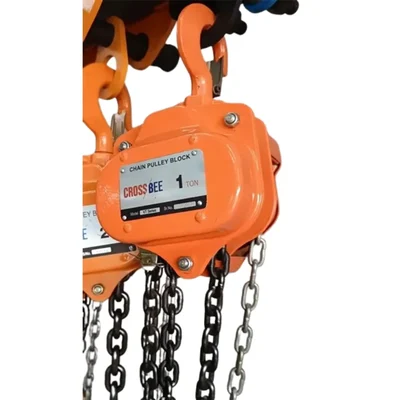

Crossbee 1 Ton Chain Pulley Block With 3 Meter 6 mm G80 Load Chain, 3 Meter Standard Lift-Single Fall (Warranty-6 Months)
SKU: TI-C1-16148
₹5390 (Including GST)
MRP : ₹8000
Get extra ₹81 Discount (On Checkout)
Delivery By: May 16 - May 18
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Chain Length - 3 m
1 Ton Single Fall Pulley Block with Chain
Standard Lift 3 Meter
Test Load 1.5 Ton
6 mm load chain
Description
1 Ton Single Fall Pulley Block with Chain
Standard Lift 3 Meter
Test Load 1.5 Ton
6 mm load chain
Description
Warranty- 6 months
Country of origin: China
Description
Crossbee 1 Ton Chain Pulley Block With 3 Meter 6 mm G80 Load Chain, 3 Meter Standard Lift-Single Fall (Warranty-6 Months)
Description :
- A pulley is a wheel of an axle or a shaft that is designed to support movement and change of direction of a taut cable. The chain pulley is an extension of this process, wherein a chain is typically hung over the circumference of the rotary axle and is connected to a hook on either side.
- These chain pulleys are capable of lifting heavy materials and are therefore used in many industries, mainly construction or wherever there is a need to lift up heavy objects to a certain height.
Features:
- Safety first – This model by Imported complies with all safety norms and therefore ensures the safety of the workmen. It is very sturdy and lightweight as compared to other alternatives.
- Operation – The workmen can easily handle and operate M2. Also, it requires considerably less maintenance because of hardened surface gears.
- Capacity – This heavy-weight model has a humongous capacity.
- Durability – The needle roller bearings reduce the burden on the chain pulley which ensures it’s run through for a longer duration. Further, the M2 is coated with Anti-corrosive powder for rust reduction and better aesthetics.
Specification :
- Product Type : Single Fall Chain Pulley Block
- Brand : Generic
- Capacity : 1000Kg (1 Ton)
- No. of Load Chain : 1
- No. of Fall : 1
- Diameter of Load Chain : 6 mm
- Hand Chain Diameter : 3 mm
- Working : Manual
- Chain Material : G80
- Load Chain Length : 3 Meter
- Hand Chain Length : 2.39 m
- Standard Lift : 3 Meter
- Safety Factor : 4:1
- Lifting Effort Required : 304 N
- Dimension (LxWxH) : 27.5x18.5x16 cm
- Packaging Type : Wooden Box
Application :
- Suitable for a Wide Range of Applications for lifting materials which Include Construction, Manufacturing, Workshops and warehouses.
Note :
- The video shown are for illustration purposes only and may not be an exact representation of the product. Colour and Shape of the product may vary.
Specifications
:- Brand: CROSSBEE
- Weight (Approx.) : 8 kg
- Load Capacity : 1 ton
