Short Description
Mini Electric Hoist 600/1200kg with Double Hook is capable of lifting 1200kg of weight with the aid of double hook.

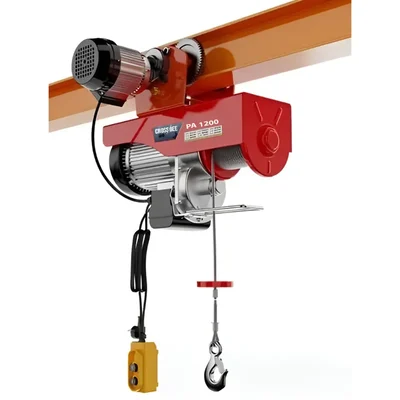

Electric Hoist with Motorized Travelling Trolley
Maximum 1200 KG Lifting Capacity
20 m long,8 mm diameter Wire Rope
Operating Mode: Horizontal (Straight Line)
Travelling Trolley Motor power is 1 hp
Remote Controlled Electric hoist
This Travelling Trolley Is Suitable For 2.5 * 5 inch upto 4 * 8 inch
Country of origin: China
Specification
Description
CROSSBEE PA 1200 Electric Hoist 2.5 HP Copper Winding Motor,8 mm & 20 meter Wire Rope |1 hp Electric Travelling Trolley

Description :
  • With a specially designed rope guide system to avoid rope slackening, this Electric Travelling Trolley has a built-in electrical control panel. Low noise operation is best suited to its medium-duty application design.
  • Mini Electric Hoist 600/1200kg with Double Hook is capable of lifting 1200kg of weight with the aid of double hook. It is designed to operate electrically, with an emergency push button in red to prevent any casualty.

Features :
  • Low Noise
  • Minimal Maintenance Required
  • Increases Work Speed
  • With Stops Hook
  • Wide Customizations To Suit Your Requirements
  • Powerful pure copper wire motor
  • 8mm Unbreakable anti-rotation wire
  • Smooth stopping action prevents damage to cable and assembly
  • High-speed & low-maintenance
  • Includes manganese hook for better grip and durability
  • Splash-proof remote with an urgent button
  • Compact and small size design
  • Long life span and high efficiency
  • Applicable for most industry, business, handicraft industry and service industry
  • Can be used in conjunction with many types of electric or manual cranes such as the single-girder crane, the double-girder crane, the cantilever crane and the gantry crane

Specifications :
  • Product Type : Electric Hoist with Motorized Travelling Trolley
  • Brand : CROSSBEE
  • Beam Size : 2.5 * 5 inch upto 4 * 8 inch
  • Lifting Height : 20/10 Meter
  • Lifting Height : Single Hook : 20 m & Double Hook : 10 m
  • Efficiency : 0.75
  • Working : Remote Controlled
  • Use Method : Single Hook & Double Hook
  • Single Hook Load Capacity : 600 KG
  • Double Hook Load Capacity : 1200 KG
  • Lifting Weight : 600 to 1200 KG
  • Rated Voltage : 220/230/240 V
  • Wire Rope Length : 20 m
  • Hoisting Speed : 18 meter / minute
  • Continuous Working Capacity : 2 hours (Approx.)
  • Wire Rope Dia. : 8 mm

Electric Travelling Trolley

Specification :
  • Motor : 1 HP
  • Rated Voltage : 220V
  • Winding : Pure Copper Winding Motor
  • Operating Mode : Horizontal (Straight Line)

In The Box :
  • 1 Electric Hoist
  • 1 Electric Hoist Remote
  • 1 Eye Hook
  • 1 Pulley Hook
  • 20 m Wire Rope
  • Mounting Case
  • Nut bolts and Clamps
  • 1 Electric Travelling Trolley

Note :
  • All these accessories are assembled with the machine.
