1.5 HP Copper Winding Motor
20 Meter & 5 mm Wire Rope
Lifting Height : Single Hook-20m , Double Hook-10m
Single Hook Load Capacity : 250 kg & Double Hook Load Capacity : 500 kg
- Farm & Garden
- Pumps & Motors
- Food Processing
- Workshop, DIY & MRO
Brand : CROSSBEE

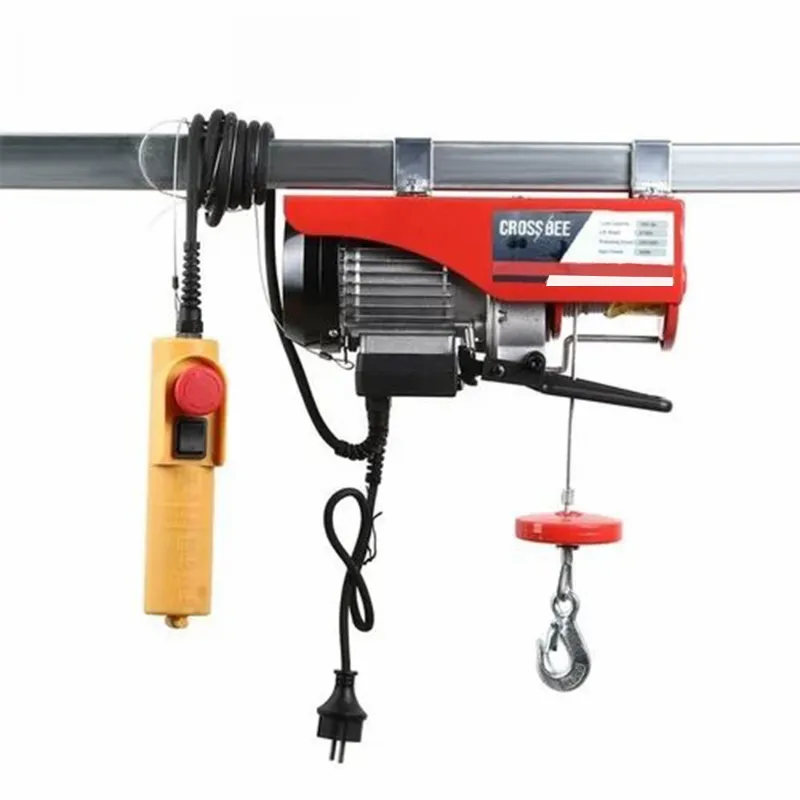

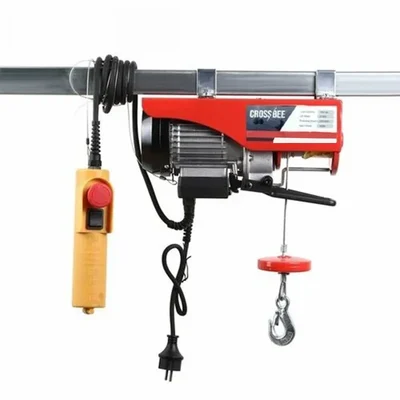

Crossbee PA 500 kg Electric Hoist with 1.5 HP Copper Winding Motor, 5 mm diameter & 20 meter long Wire Rope
SKU : TI-CP-16079
MRP : ₹13000
₹7980
39% OFF!
-
1
+
24 people have bought this recently
Delivery By: Jun 20 - Jun 22
Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
Short Description
Heavy Duty PA 500 Electric Hoist
1.5 HP Copper Winding Motor
20 Meter & 5 mm Wire Rope
1.5 HP Copper Winding Motor
20 Meter & 5 mm Wire Rope
Country of origin: China
Specification
- Brand: CROSSBEE
- Power : 1.5 hp
- Weight (Approx.) : 15.7 kg
- Load Capacity : 500 kg
- Phase : Single
- Product Type : Electric Hoist
- Model No : PA 500
- Brand : CROSSBEE
- Phase : Single Phase
- Motor Power In (HP) : 1.5 HP
- Motor Power In (Watt) : 1000 W
- Working : Remote Controlled
- Wire Rope Length : 20 meter (2000 cm)
- Lifting Height : Single Hook-20m , Double Hook-10m
- Lifting Speed : Single & Double Hook : 18 m/min
- Use Method : Single Hook & Double Hook
- Wire Rope Dia. : 5 mm
- Single Hook Load Capacity : 250 kg
- Double Hook Load Capacity : 500 kg
- Rated Voltage : 220-240 V
- Continuous Working Capacity : 2 hours (Approx.)
Description
Electric hoists are a type of material handling tool used for raising, lowering, and moving goods. They have an electric motor that propels them overhead.
The electric hoist's 500 KG load capacity makes it simple to lift compact engines, transmissions, or building supplies. It features a steel hook with a secure clasp and supports two lifting modes. The Single line can move up to 250 kg and the double line can move up to 500 kg.
With a specially designed rope guide system to avoid rope slackening, this Electric Travelling Trolley has a built-in electrical control panel. Low noise operation is best suited to its medium-duty application design.
The electric hoist's 500 KG load capacity makes it simple to lift compact engines, transmissions, or building supplies. It features a steel hook with a secure clasp and supports two lifting modes. The Single line can move up to 250 kg and the double line can move up to 500 kg.
With a specially designed rope guide system to avoid rope slackening, this Electric Travelling Trolley has a built-in electrical control panel. Low noise operation is best suited to its medium-duty application design.
Features
:- The electric hoist's 500 KG load capacity makes it simple to lift compact engines, transmissions, or building supplies. It features a steel hook with a secure clasp and supports two lifting modes.
- Premium Design : The alloy shell and galvanized steel wire used in the construction of this electric hoist winch prevent rust, corrosion, and rain. 20 meters of steel line with a 5 mm (in) diameter. Additionally, the metal fastening ring is simple to install and can be adjusted to meet your diverse needs.
- Compact and small size design
- Long life span and high efficiency
- Applicable for most industry, business, handicraft industry and service industry
- Can be used in conjunction with many types of electric or manual cranes such as the single-girder crane, the double-girder crane, the cantilever crane and the gantry crane
Applications
:- The power hoist is appropriate for usage in factories, warehouses, building sites, auto manufacturers, railroad constructions, etc. It is the best tool for use when working in challenging indoor or outdoor conditions. Please use it to ensure that the bar's width and height are compatible with the mounting brackets' internal dimensions.
Inside The Box :
- 1 Electric Hoist.
- 1 Electric Hoist Remote.
- 1 Eye Hook.
- 1 x Pulley Hook
- 20-meter Wire Rope.
- Mounting Case
- Nut bolts and Clamps
