Features

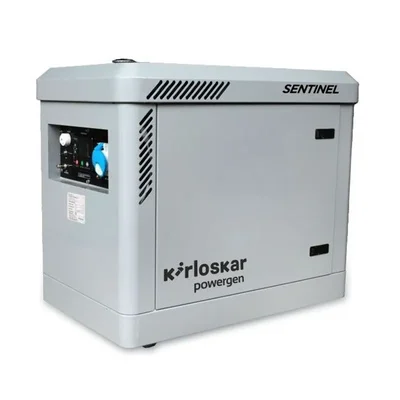

• Rated capacity : ~3.5 kVA at 230 V/50Hz single phase.
• Fuel type : Diesel engine (as indicated for “3.5 kVA Diesel Inverter” category)
• Fuel tank capacity : 12.5 L
• Consumption : For the 3.5 kVA model: approx. 1.1 Lt/Hr (At 100% Load) /0.93 Lt/Hr (At 75% Load) / 0.78 Lt/Hr (At 50% Load)
• Voltage output : 230 V single-phase (standard for small portable sets)
• Low noise / compact footprint : Spec shows “Sound Level LWA / dB(A) < 75 dB(A)” for this size.
• Portable build :  Designed for mobility and practical use in smaller installations or where minimal footprint is needed. Brochures mention “Power on Wheels … mobile power backup … wide length handle … wheels” for this size range.
• Output quality : According to the spec sheet, THD (voltage) less than 5% for similar models in the series.
• Brand & support : Kirloskar has a wide service network in India, which adds to the appeal from a maintenance & support perspective.

Applications

• Home backup power : For residences during power outages, to run lighting, fans, TV, smaller refrigerators or other essential appliances.

• Small business / shop backup : For small retail shops, kiosks, clinics, salons, offices where a few kVA of reliable backup power is required.

• Outdoor/mobile operations : Such as remote site lighting, field workshops, small events, mobile vendors, small construction jobs that require moderate power.

• Agricultural/light rural use : In rural areas or farms where grid supply is unstable or absent; for portable pumps, lighting, small motors (within load limits).

• Because of its size (~3.5 kVA), it is not designed for large industrial motors or three-phase heavy loads, but rather for lighter single-phase loads or standby usage.

Usage

• Install the generator on a level, dry, and well-ventilated outdoor site, ensuring exhaust fumes are away from inhabited spaces and adequate clearance is provided.

• Before first start (and before every subsequent use):

  Check engine oil level, coolant level (if water-cooled), battery charge (if electric start) and fuel level.
• Ensure that all cables and loads are disconnected, and that the generator’s control panel is set to standby/ready mode.

• On starting :

  Start engine without load, allow it to warm up for a minute or two.
• Gradually apply load; avoid connecting full load instantly after cold start.
• Monitor the voltage and frequency; ensure that the load does not exceed the rated capacity (approx. 3.5 kVA) and allow margin for starting surges of motors.

• During operation :

  Maintain clean surrounding and ensure ventilation around generator is not obstructed.
• Monitor fuel consumption, engine temperature, and listen for unusual noises or vibration.
• If powering sensitive electronics, ensure protection via a UPS or AVR (even though output THD is low) to guard against transients.

• When shutting down :

  Remove load first, let the generator run unloaded or lightly loaded for 1–2 minutes to stabilize.
• Then turn off the generator, allow it to cool, and if storing for longer period, drain fuel if recommended by manufacturer or treat fuel as per guidance.
• Ensure proper grounding and circuit protection (breaker/fuse) is in place, and wiring is appropriate for the load.
