Brand: Insize

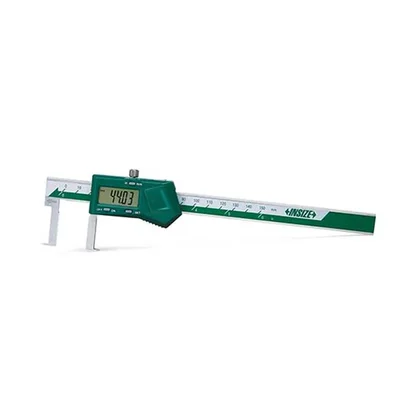

Insize 22-150mm Digital Caliper, 1120-150A Model
SKU: TB-IN-65228
Estimated Delivery By: Mar 6 - Mar 8
MRP : ₹9899 ₹7899
20% OFF!
Estimated Delivery By: Mar 6 - Mar 8 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹7899 (Including GST)
MRP : ₹9899
20% OFF!
Get Extra ₹118 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Insize 22-150mm Digital Caliper
1120-150A Model
1120-150A Model
Country of origin: India
Specifications
- Brand: Insize
- Model No : 1120-150A
- Measurement Range : 22.098 - 152.4 mm
- Resolution : 0.01 mm
- Material : Stainless Steel
- Power Supply : Battery CR2032
- Overall Length : 250 mm
- Display : LCD
- Accuracy : ±0.04 mm
- Lower Jaw Length : 30 mm
Description
The Insize 1120-150A is a specialized digital caliper made for measuring the diameter of internal grooves. This 1120 series is the "standard" internal groove specialist with flat-faced internal jaws.
Features
:- Flat-faced internal jaws : Equipped with Flat-faced internal jaws designed to measure the diameter of grooves
- Automatic Power Off: To conserve the CR2032 battery, the unit shuts down automatically after a period of inactivity.
- Function Buttons : Simple interface with On/Off, for setting a starting value
Applications
:- O-Ring Groove Inspection: Verifying the depth and diameter of grooves inside hydraulic or pneumatic cylinders.
- Snap-Ring Channels: Ensuring the internal channel for a snap-ring is machined to the correct tolerance.
- Step Measurement: Measuring internal steps or offsets inside a bored hole where standard calipers cannot reach.
